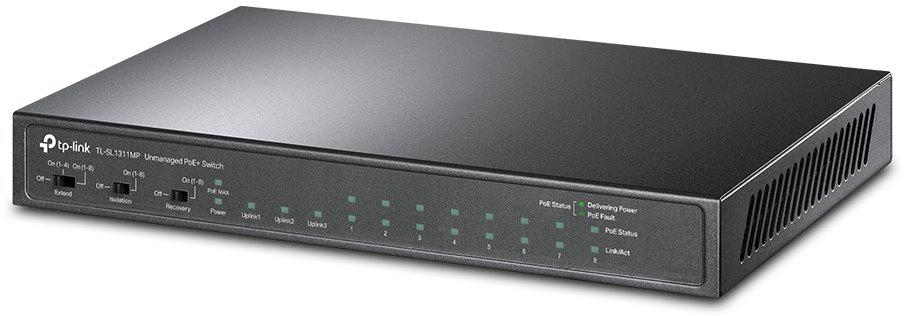

TPL SW 8P 10/100 3P GB POE TL-SL1311MP

Forwarding rate: 5.6544 Mpps

Jumbo frames support: Yes

Jumbo frames: 16000

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 7.6 Gbit/s

Rack mounting: No

Number of fans: 0 fan(s)

Networking standards: IEEE 802.3af, IEEE 802.3at

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Auto-negotiation: Yes

10G support: No

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Package type: Box

SFP+ module slots quantity: 1

Installed SFP modules quantity:

Power connector: DC-in jack

SFP module slots quantity: 1

Basic switching RJ-45 Ethernet ports quantity: 10

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

DC input voltage: 53.5 V

Input current: 2.43 A

Number of power supply units: 1

Power supply included: Yes

Total Power over Ethernet (PoE) budget: 124 W

Power over Ethernet plus (PoE+) ports quantity: 8

Height: 26 mm

Depth: 126 mm

Width: 209 mm

LAN port type: FastEthernet
