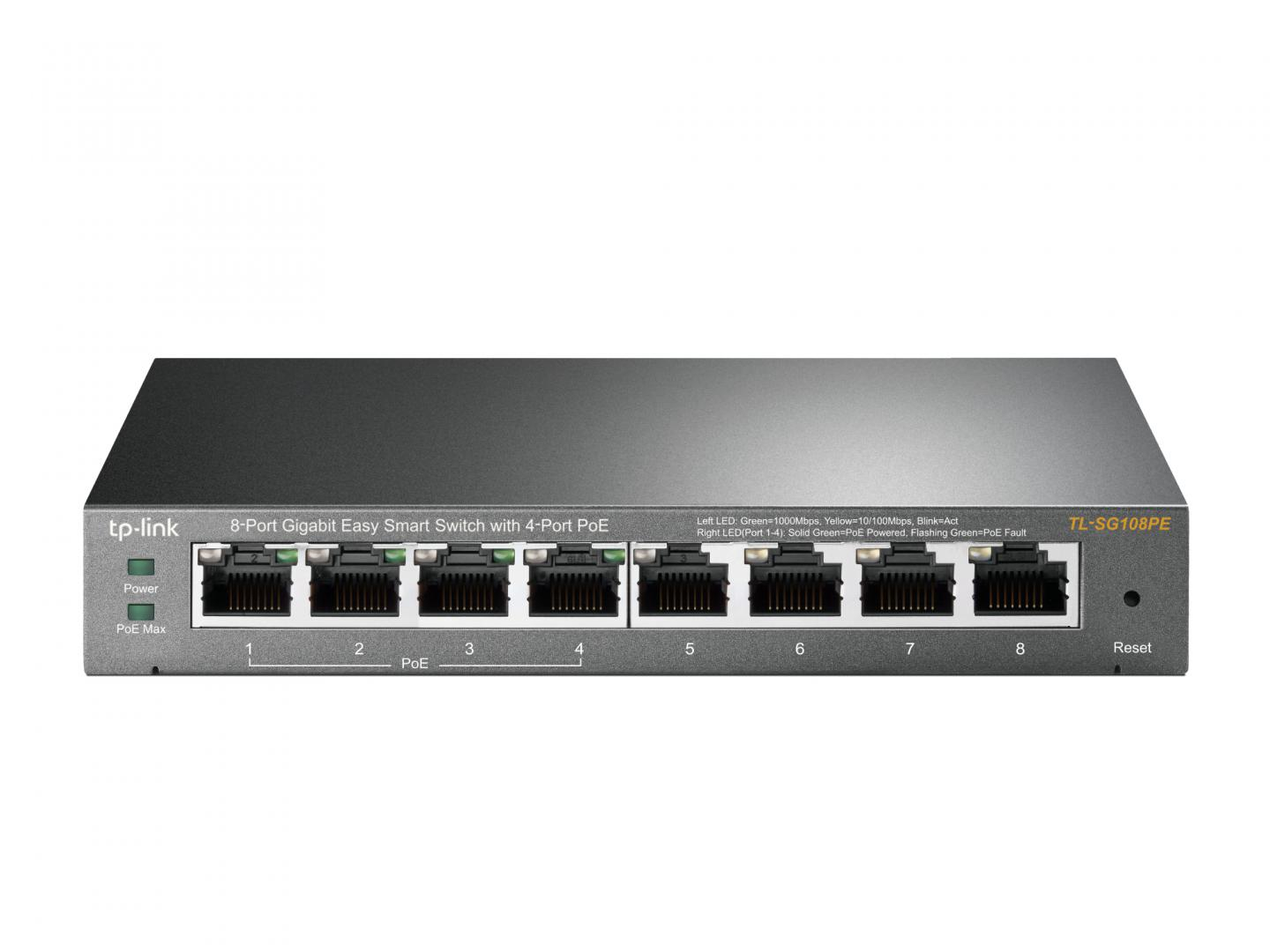

TPL SW 8-PORT GB EASY SMART + 4-PORT POE

Certification: FCC, CE, RoHS

Switching capacity: 16 Gbit/s

Forwarding rate: 11.9 Mpps

MAC address table: 4000 entries

Store-and-forward: Yes

Jumbo frames: 15000

Jumbo frames support: Yes

Packet buffer memory: 1.5 MB

Packet forwarding rate (1 Gbps): 11900000 pps

LED indicators: Activity, Link, PoE, Power, Speed, Status

Rack mounting: No

Stackable: No

Product colour: Black

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

VLAN support: Yes

Quality of Service (QoS) support: Yes

Rate limiting: Yes

Harmonized System (HS) code: 85176990

Web-based management: Yes

Switch type: Managed

Switch layer: L2

Auto MDI/MDI-X: Yes

Port mirroring: Yes

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

Power over Ethernet (PoE): Yes

Link aggregation: Yes

Virtual LAN features: Port-based VLAN

Number of VLANs: 32

Heat dissipation: 256.19 BTU/h

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 95%

User guide: Yes

Cables included: AC

Package depth: 196 mm

Package weight: 890 g

Package width: 131 mm

Package height: 121 mm

Package type: Box

Gigabit Ethernet (copper) ports quantity: 8

Installed SFP modules quantity:

Power over Ethernet (PoE) ports quantity: 4

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Power supply included: Yes

Input current: 1.25 A

Input voltage: 48 V

AC input frequency: 50 Hz

Power source: DC

AC input voltage: 220 V

Power consumption (max): 65.2 W

Power over Ethernet (PoE) power per port: 15.4 W

Power over Ethernet plus (PoE+) ports quantity: 4

Total Power over Ethernet (PoE) budget: 55 W

IGMP snooping: Yes

Loop protection: Yes

Depth: 101 mm

Width: 158 mm

Height: 25 mm

LAN port type: Gigabit

Layer: Layer-2

Rackable: No

LAN-Ports: 8

Redundant-PSU: No

Garantia Produsului: 60 luni
