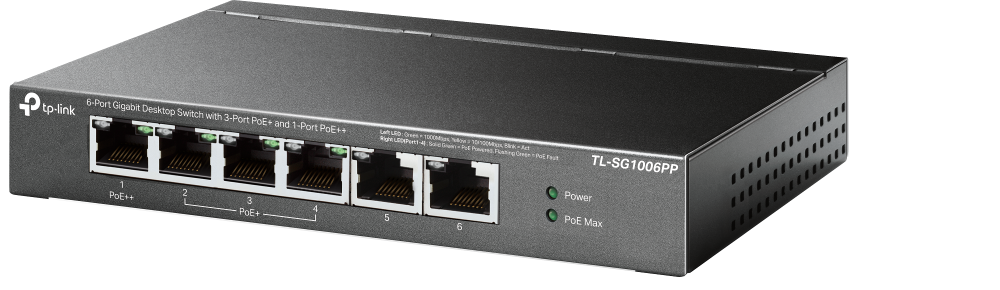

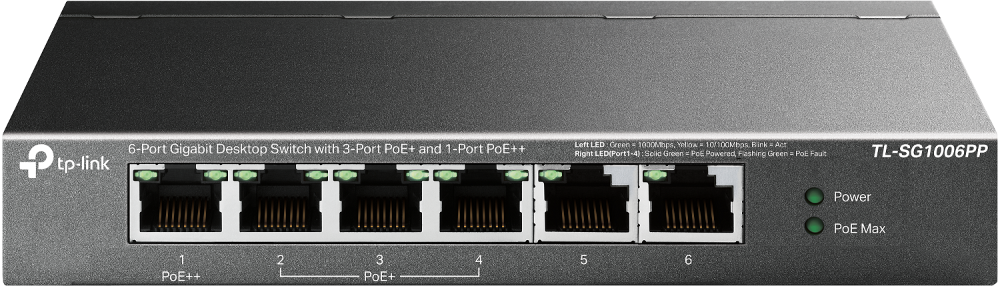

TPL SW 6P-GB POE-3P UNMNGD DESK

"6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ PORT: 1× Gigabit PoE++ Port, 3× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports SPEC: 802.3af/at/bt type3, 64 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-2, PoE Auto Recovery for Port1-4, Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Stackable: Yes
Forwarding rate: 8.928 Mpps
LED indicators: Yes
Certification: FCC, CE, RoHS
Switching capacity: 12 Gbit/s
Store-and-forward: Yes
MAC address table: 4000 entries
Rack mounting: Yes
Product colour: Grey
Ethernet LAN data rates: 10,100,1000 Mbit/s
Quality of Service (QoS) support: Yes
Flow control support: Yes
Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Switch type: Unmanaged
Power over Ethernet (PoE): Yes
Auto MDI/MDI-X: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
10G support: No
MAC address auto-aging supported: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
Heat dissipation: 16.2 BTU/h
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Quick start guide: Yes
Package type: Box
Fanless: Yes
Power over Ethernet (PoE) ports quantity: 4
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 6
DC input voltage: 53.5 V
Input current: 1.31 A
Power source: DC/PoE
Power consumption (typical): 4.75 W
Power consumption (max): 71.46 W
Power supply included: Yes
Total Power over Ethernet (PoE) budget: 64 W
IGMP snooping: Yes
Height: 25 mm
Depth: 101 mm
Width: 158 mm
LAN-Port-Type: Gigabit
