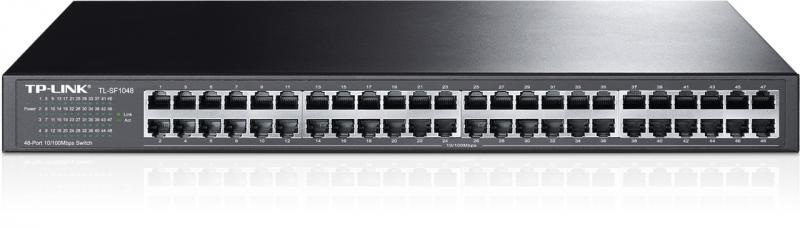

TPL SW 48P-FE UNMNGD rm

Stackable: No

Forwarding rate: 7.14 Mpps

LED indicators: Yes

Compliance certificates: Federal Communications Commission (FCC), CE, RoHS

Store-and-forward: Yes

Jumbo frames: 10000

Switching capacity: 9.6 Gbit/s

Throughput: 71.4 Mpps

Jumbo frames support: Yes

MAC address table: 8000 entries

Rack mounting: Yes

Form factor: 1U

Product colour: Black

Housing material: Metal

Ethernet LAN data rates: 10,100 Mbit/s

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

10G support: No

Auto MDI/MDI-X: Yes

Auto-negotiation: Yes

Power over Ethernet (PoE): No

Cable types supported: Cat3, Cat5e, Cat4, Cat5

Copper ethernet cabling technology: 100Base-TX, 10Base-T

Heat dissipation: 33.78 BTU/h

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Rack mount kit: Yes

Quick start guide: Yes

Cables included: AC

Package depth: 528 mm

Package type: Box

Package width: 250 mm

Package weight: 2.62 kg

Compatible operating systems: Microsoft Windows 8, 7,Vista, XP, MAC OS, NetWare, UNIX, Linux

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity: 48

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Power connector: DC-in jack

Fast Ethernet (copper) ports quantity: 48

Power source: AC

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power supply included: Yes

Power consumption (max): 9.9 W

Power consumption (typical): 9.9 W

Supported network protocols: CSMA/CD, TCP/IP

Sustainability compliance: Yes

Depth: 220 mm

Width: 440 mm

Height: 44 mm

LAN port type: FastEthernet

Garantia Produsului: 36 luni
