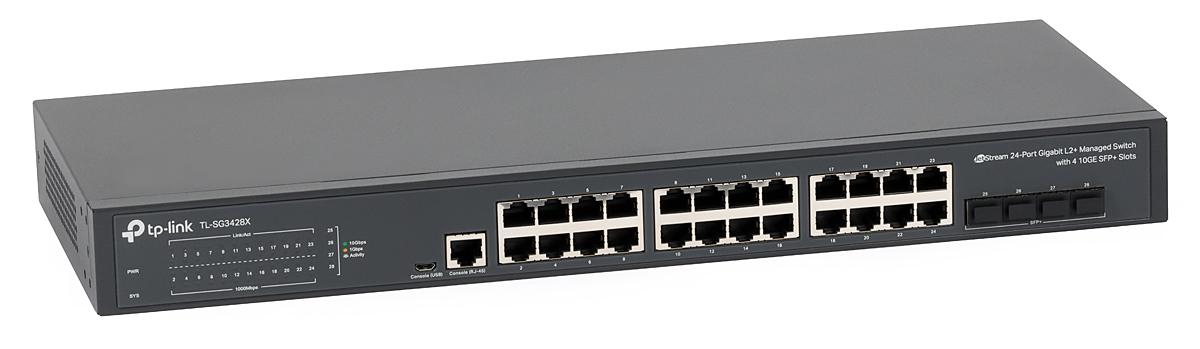

TPL SW 24P-GB 4 10GE SFP L2 MANAGED

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6 "
Garantie: 24 luni


Specificatii tehnice

Jumbo frames support: Yes
Static route: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Switching capacity: 128 Gbit/s
Store-and-forward: Yes
Packet buffer memory: 12 MB
Number of static routes: 48
Forwarding rate: 95.23 Mpps
Product colour: Black
LED indicators: Yes
Form factor: 1U
Number of fans: 0 fan(s)
Rack mounting: Yes
Harmonized System (HS) code: 85176990
MIB support: Yes
Switch layer: L2/L3
Cloud-managed: Yes
ARP inspection: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Configuring Location Settings (CLI): Yes
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features: Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv4 routes: 48
IPv6 routes: 48
Number of VLANs: 4000
Head-of-line (HOL) blocking: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Flow control support: Yes
Rate limiting: Yes
Active link detection: Yes
10G support: Yes
Port mirroring: Yes
Policy-based routing: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 80.353 BTU/h
Quick start guide: Yes
Cables included: LAN (RJ-45)
Package depth: 250 mm
Package height: 80 mm
Package weight: 2.69 kg
Package width: 528 mm
Fanless: Yes
SFP module slots quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power supply included: Yes
Power consumption (max): 23.6 W
Power over Ethernet (PoE): No
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Management protocols: SNMPv1/v2c/v3, SNTP
Authentication type: AAA, RADIUS, TACACS+
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Loop protection: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
Width: 440 mm
Height: 44 mm
Depth: 180 mm
LAN port type: Gigabit
