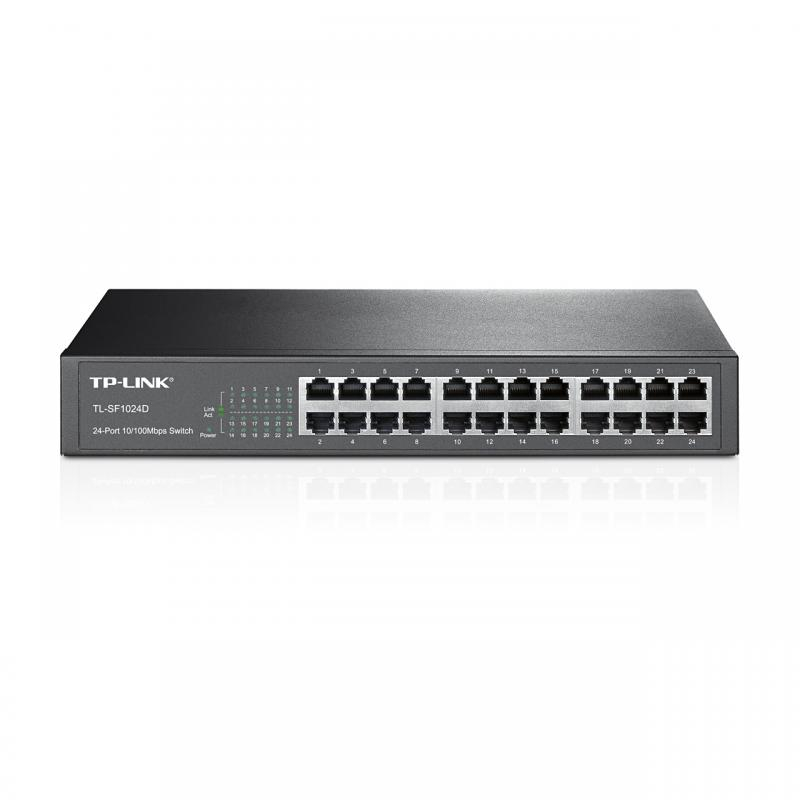

TPL SW 24P-FE UNMNGD DESK/RM

"24-Port 10/100 Mbps Switch PORT: 24× 10/100 Mbps RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Plug and Play"
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 3.57 Mpps
LED indicators: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Switching capacity: 4.8 Gbit/s
Throughput: 3.57 Mpps
MAC address table: 8000 entries
Packet buffer memory: 2 MB
Store-and-forward: Yes
Rack mounting: Yes
Housing material: Metal
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
10G support: No
Cable types supported: Cat3, Cat5e, Cat4, Cat5
Power over Ethernet (PoE): No
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10GBASE-T, 100BASE-TX
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 10.88 BTU/h
Operating temperature (T-T): 0 - 40 °C
Cables included: AC
Rack mount kit: Yes
Package type: Box
Package height: 80 mm
Package weight: 2 kg
Package width: 250 mm
Package depth: 400 mm
Fanless: Yes
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: AC-in jack
Installed SFP modules quantity: 0
Fast Ethernet (copper) ports quantity: 24
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 24
Power supply included: Yes
Power consumption (typical): 3.53 W
AC input voltage: 100 - 240 V
Power source: AC
Supported network protocols: CSMA/CD, TCP/IP
Sustainability compliance: Yes
Depth: 180 mm
Width: 294 mm
LAN port type: FastEthernet
