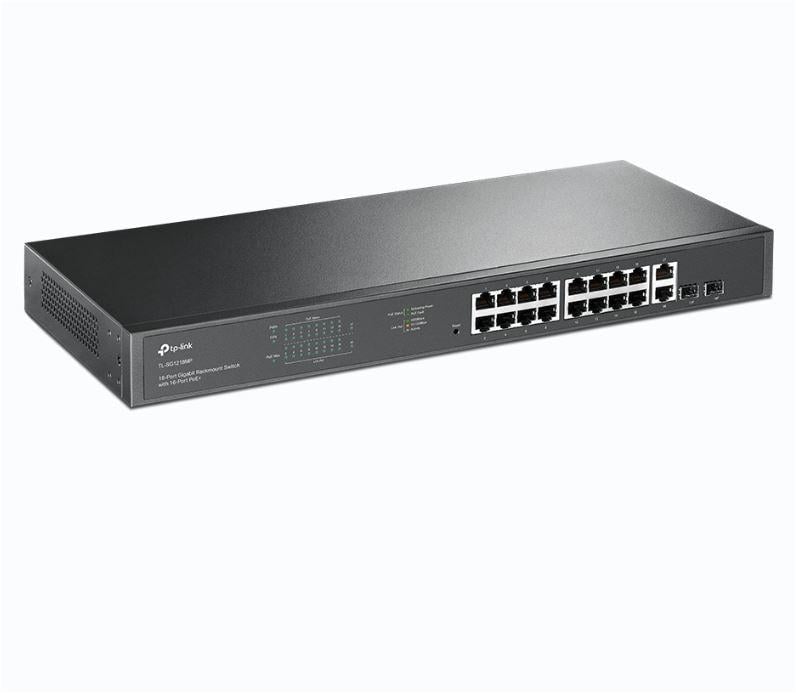

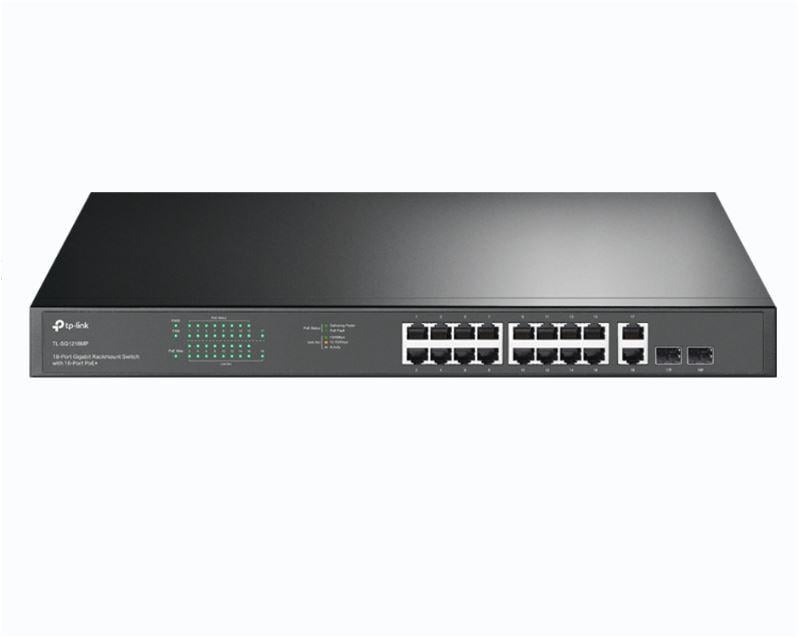

TPL SW 18P-GB 2P-SFP UNMNGD POE SWITCH

"18-Port Gigabit Rackmount Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 26.78 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Packet buffer memory: 4.1 MB
Jumbo frames: 10000
Switching capacity: 36 Gbit/s
MAC address table: 8000 entries
Jumbo frames support: Yes
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Housing material: Metal
Ethernet LAN data rates: 10,100,1000 Mbit/s
Quality of Service (QoS) support: Yes
Flow control support: Yes
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Harmonized System (HS) code: 85176990
Traffic classification: Yes
Switch type: Unmanaged
Full duplex: Yes
Power over Ethernet (PoE): Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
10G support: No
Half duplex: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes
Heat dissipation: 977.44 BTU/h
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Quick start guide: Yes
Cables included: AC
Package height: 80 mm
Package width: 250 mm
Package depth: 528 mm
Package weight: 3.05 kg
Basic switching RJ-45 Ethernet ports quantity: 18
Gigabit Ethernet (copper) ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Power supply included: Yes
Power consumption (max): 286.64 W
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power source: AC
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 16
Depth: 180 mm
LAN-Port-Type: Gigabit
