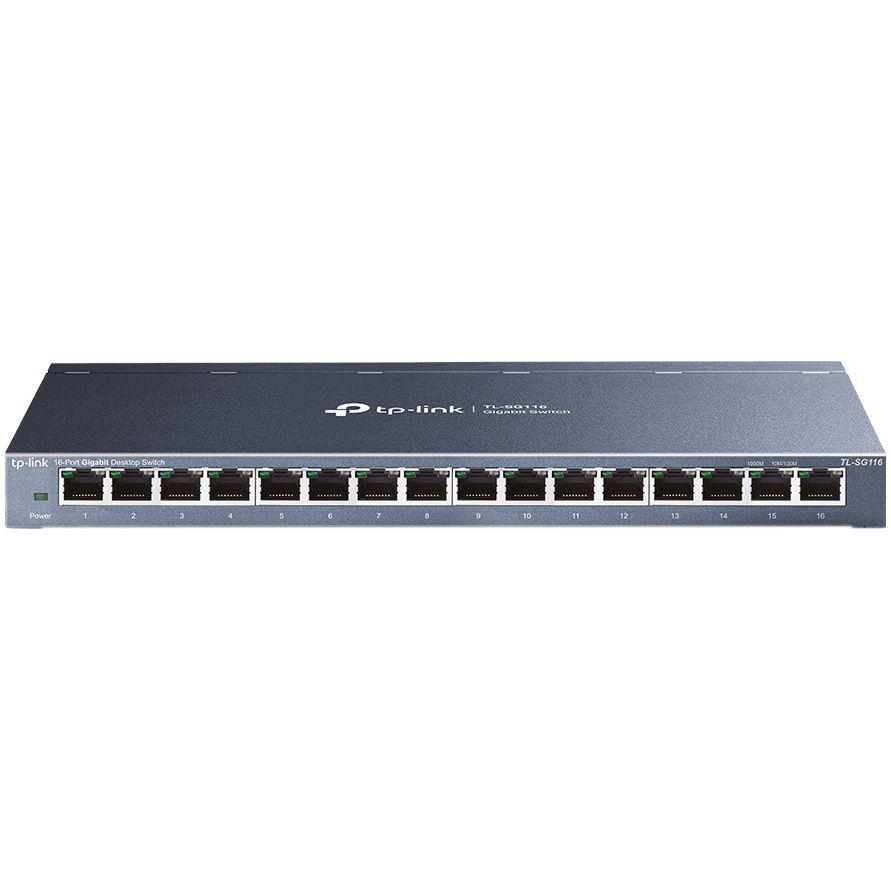

TPL SW 16P-GB UNMNGD DESKTOP SWITCH

"16-Port Gigabit Desktop Switch PORT: 16× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Stackable: No
Layer: Unmanaged
Forwarding rate: 23.81 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Store-and-forward: Yes
MAC address table: 8000 entries
Jumbo frames: 9000
Switching capacity: 32 Gbit/s
Number of queues: 4
Packet buffer memory: 4.1 MB
Jumbo frames support: Yes
Rack mounting: No
Product colour: Black
Wall mountable: Yes
Housing material: Metal
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Flow control support: Yes
Rate limiting: Yes
Quality of Service (QoS) support: Yes
VLAN support: Yes
Plug and Play: Yes
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
10G support: No
Broadcast storm control: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Number of VLANs: 32
Cable length detection: Yes
Virtual LAN features: Protocol-based VLAN, Tagged VLAN
Full duplex: Yes
Link aggregation: Yes
Power over Ethernet (PoE): No
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 31.68 BTU/h
Storage temperature (T-T): -40 - 70 °C
Quick start guide: Yes
Cables included: AC
Rubber feet: Yes
Package type: Box
Package height: 70 mm
Package width: 170 mm
Package weight: 1.33 kg
Package depth: 412 mm
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity: 0
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 16
Installed SFP modules quantity: 0
Input current: 0.6 A
DC input voltage: 9 V
Power supply included: Yes
Input voltage: 12 V
Power consumption (max): 9.3 W
AC input frequency: 50 Hz
Power source: DC
AC input voltage: 220 V
IGMP snooping: Yes
Loop protection: Yes
Height: 25.4 mm
Width: 286 mm
Depth: 111.7 mm
LAN port type: Gigabit
Rackable: No
Redundant-PSU: Yes
LAN-Ports: 16
