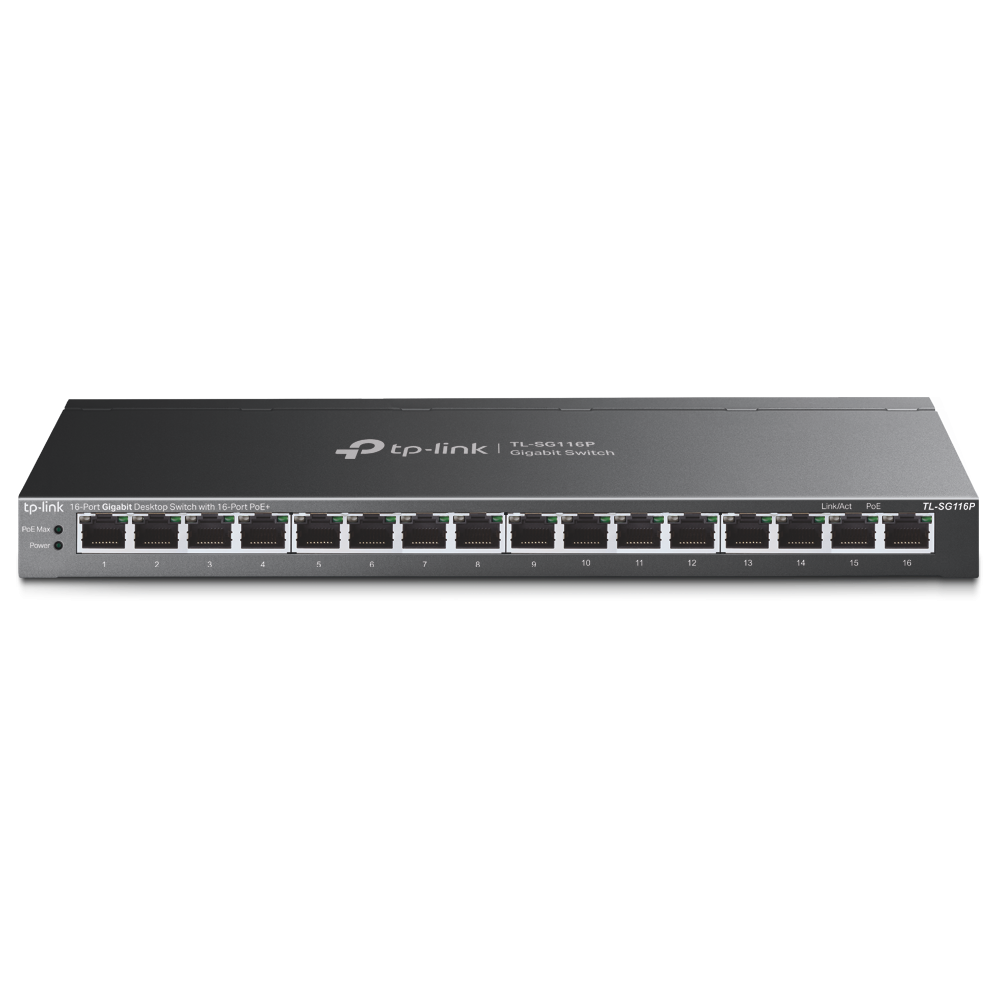

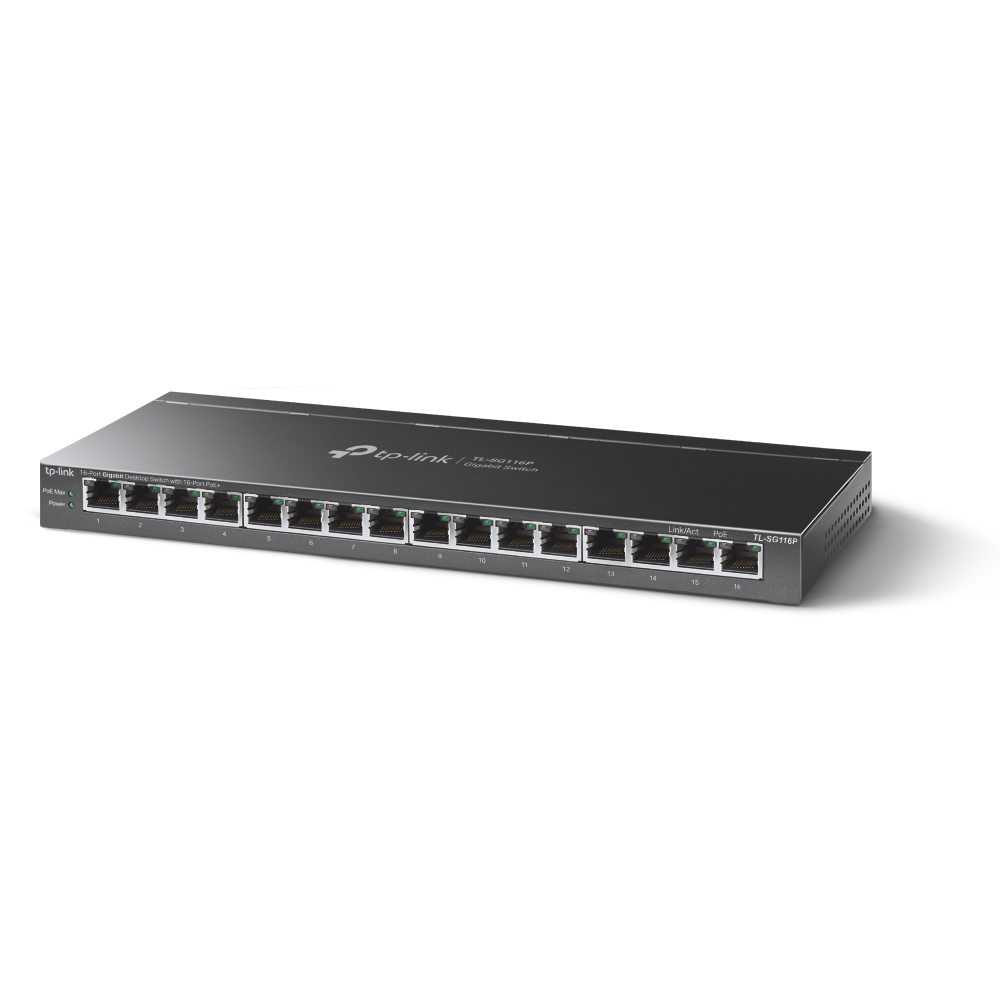

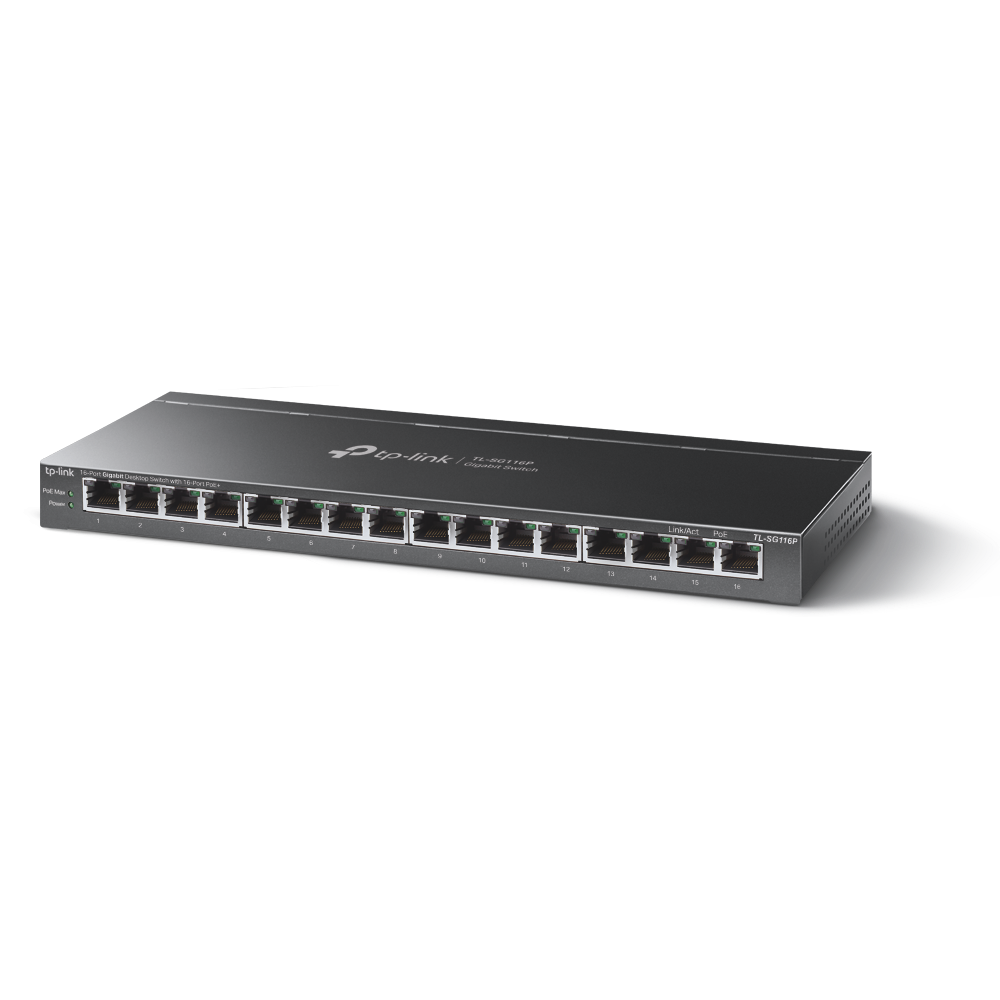

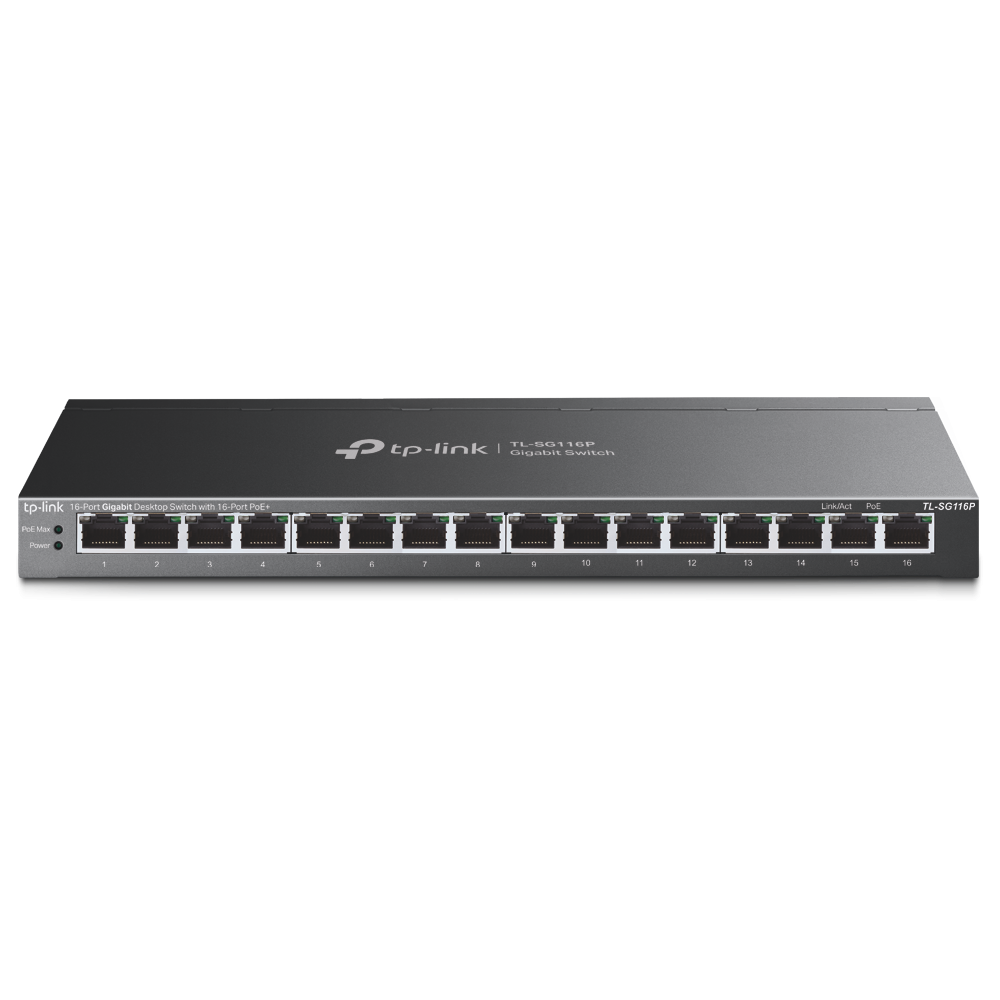

TPL SW 16P-GB UNMNGD DESKTOP SWITCH POE

"16-Port Gigabit Desktop Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports SPEC: 802.3at/af, 120 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-4, Isolation Mode, PoE Auto Recovery, Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Stackable: Yes
Forwarding rate: 23.81 Mpps
LED indicators: Yes
Number of queues: 4
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Jumbo frames support: Yes
MAC address table: 8000 entries
Jumbo frames: 9000
Switching capacity: 32 Gbit/s
Product colour: Black
Housing material: Metal
Wall mountable: Yes
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
Switch type: Unmanaged
Virtual LAN features: Protocol-based VLAN, Tagged VLAN
Number of VLANs: 32
Cable length detection: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Full duplex: Yes
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 490.55 BTU/h
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Quick start guide: Yes
Package height: 70 mm
Package weight: 2 kg
Package width: 227 mm
Package depth: 434 mm
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 16
Input current: 0.6 A
Power supply included: Yes
DC input voltage: 9 V
Power consumption (typical): 11.72 W
Power consumption (max): 144.28 W
AC input frequency: 50 Hz
AC input voltage: 220 V
IGMP snooping: Yes
Loop protection: Yes
Height: 25.4 mm
Width: 286 mm
Depth: 111.7 mm
LAN-Port-Type: Gigabit
