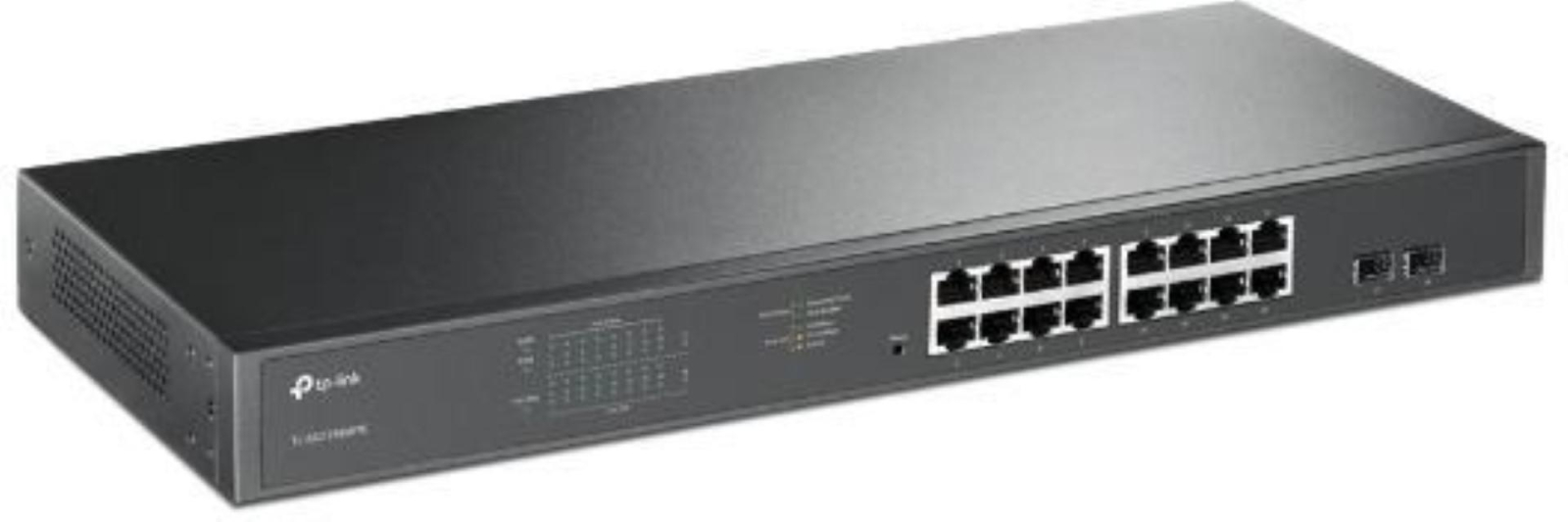

TPL SW 16P-GB 2P-SFP MNGD POE SWITCH

Switch TP-Link TL-SG1218MPE, Managed, 16 10/100/1000 Mbps RJ45 Ports, 2 Gigabit SFP Ports, Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p, POE Power Budget: 250W.
Garantie: 60 luni


Specificatii tehnice

Stackable: No
Layer: Unmanaged
Forwarding rate: 23.8 Mpps
Certification: CE, FCC, RoHS
Number of queues: 4
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
MAC address table: 8000 entries
Switching capacity: 36 Gbit/s
Jumbo frames: 9000
Jumbo frames support: Yes
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
VLAN support: Yes
Harmonized System (HS) code: 85176990
Switch layer: L2
Web-based management: Yes
Switch type: Managed
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Security algorithms: SNMP, SNMPv2, SNMPv3
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
10G support: No
Broadcast storm control: Yes
Virtual LAN features: Port-based VLAN
Number of VLANs: 32
Heat dissipation: 741.15 BTU/h
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Fiber ethernet cabling technology: 1000BASE-X
User guide: Yes
Cables included: AC
Rack mount kit: Yes
Package height: 80 mm
Package weight: 29.1 kg
Package width: 250 mm
Package depth: 528 mm
SFP+ module slots quantity: 2
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 16
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power supply included: Yes
AC input voltage: 100 - 240 V
Power source: AC
Power consumption (max): 217.22 W
AC input frequency: 50 - 60 Hz
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 192 W
IGMP snooping: Yes
Loop protection: Yes
Depth: 180 mm
Width: 440 mm
Height: 44 mm
Rackable: No
LAN-Port-Type: Gigabit
Redundant-PSU: No
LAN-Ports: 16
