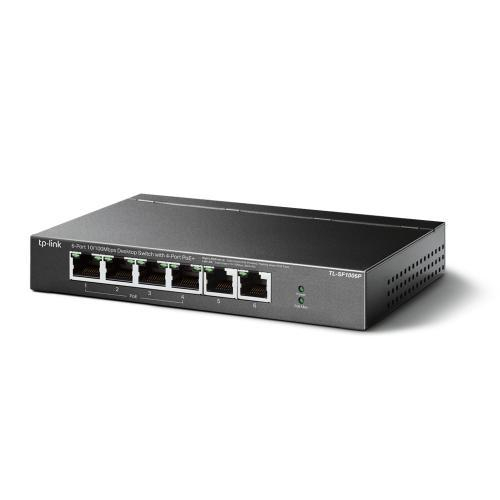

TPL 6PORT 10/100 DESKTOP 4P POE SWITCH

"6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+ PORT: 4× 10/100 Mbps PoE+ Ports, 2× 10/100 Mbps Non-PoE Ports SPEC: 802.3at/af, 67 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 0.8928 Mpps
LED indicators: Yes
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: FCC, CE, RoHS
Switching capacity: 12 Gbit/s
Jumbo frames support: Yes
MAC address table: 2000 entries
Store-and-forward: Yes
Jumbo frames: 2000
Rack mounting: No
Product colour: Black
Housing material: Metal
Networking standards: IEEE 802.3af, IEEE 802.3at
Flow control support: Yes
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Auto-negotiation: Yes
10G support: No
Half duplex: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
MAC address auto-aging supported: Yes
MAC address auto-learning supported: Yes
Full duplex: Yes
Auto MDI/MDI-X: Yes
Power over Ethernet (PoE): Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
Heat dissipation: 252.34 BTU/h
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
User guide: Yes
AC adapter included: Yes
Package type: Box
Package depth: 196 mm
Package width: 131 mm
Package height: 121 mm
Package weight: 870 g
Fanless: Yes
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: 6
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Power consumption (max): 74 W
AC input frequency: 50 Hz
AC input voltage: 220 V
Power supply included: Yes
DC input voltage: 53.5 V
Input current: 1.31 A
Power source: DC/PoE
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 67 W
Sustainability compliance: Yes
Height: 25 mm
Width: 158 mm
Depth: 101 mm
LAN port type: FastEthernet
