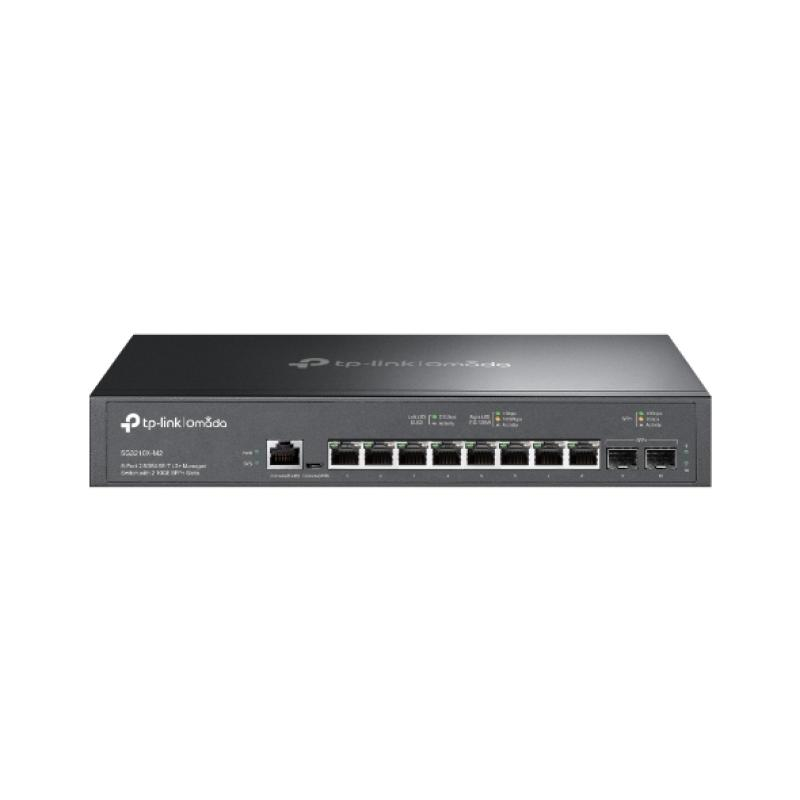

TP-LINK 8-PORT SWITCH SG3210X-M2

Console port: RJ-45/Micro-USB

Forwarding rate: 59.52 Mpps

LED indicators: Yes

Certification: CE, FCC, RoHS

Switching capacity: 80 Gbit/s

Number of static routes: 48

Number of IP interfaces: 16

Packet buffer memory: 12 MB

Jumbo frames: 9000

MAC address table: 16000 entries

Jumbo frames support: Yes

Static route: Yes

Number of fans: 2 fan(s)

Rack mounting: Yes

Form factor: 1U

Product colour: Black

Ethernet LAN data rates: 100,1000,2500 Mbit/s

Rate limiting: Yes

Flow control support: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w

Harmonized System (HS) code: 85176990

Cloud-managed: Yes

MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Traffic classification: Yes

ARP inspection: Yes

Configuring Location Settings (CLI): Yes

Web-based management: Yes

System event log: Yes

Switch type: Managed

Switch layer: L2

Multicast support: Yes

Multicast Listener Discovery (MLD) snooping: Y

Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS

Broadcast storm control: Yes

Spanning tree protocol: Yes

IP routing: Yes

Number of VLANs: 4000

Head-of-line (HOL) blocking: Yes

Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

10G support: Yes

Port mirroring: Yes

Link aggregation: Yes

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 51.18 BTU/h

Operating temperature (T-T): 0 - 50 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Quick start guide: Yes

Cables included: AC

Package type: Box

Package height: 80 mm

Package weight: 2.84 kg

Package width: 528 mm

Package depth: 250 mm

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

Installed SFP+ modules quantity:

2.5G Ethernet (copper) ports quantity: 8

Power connector: AC-in jack

SFP module slots quantity: 2

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 8

SFP+ module slots quantity: 2

Power consumption (typical): 15 W

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Power source: AC

Power supply included: Yes

GARP VLAN Registration Protocol (GVRP): Yes

Management protocols: SNMPv1/v2c/v3, SNTP

IP-MAC-Port binding: Yes

Authentication: MAC-based authentication, Port-based authentication

Authentication type: AAA, TACACS+

Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

SSH/SSL support: Yes

Loop protection: Yes

BPDU filtering/protection: Yes

Static port security: Yes

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Password protection: Yes

MAC address filtering: Yes

Access Control List (ACL): Yes

IGMP snooping: Yes

Depth: 180 mm

Height: 44 mm

Width: 294 mm

LAN-Port-Type: FastEthernet
