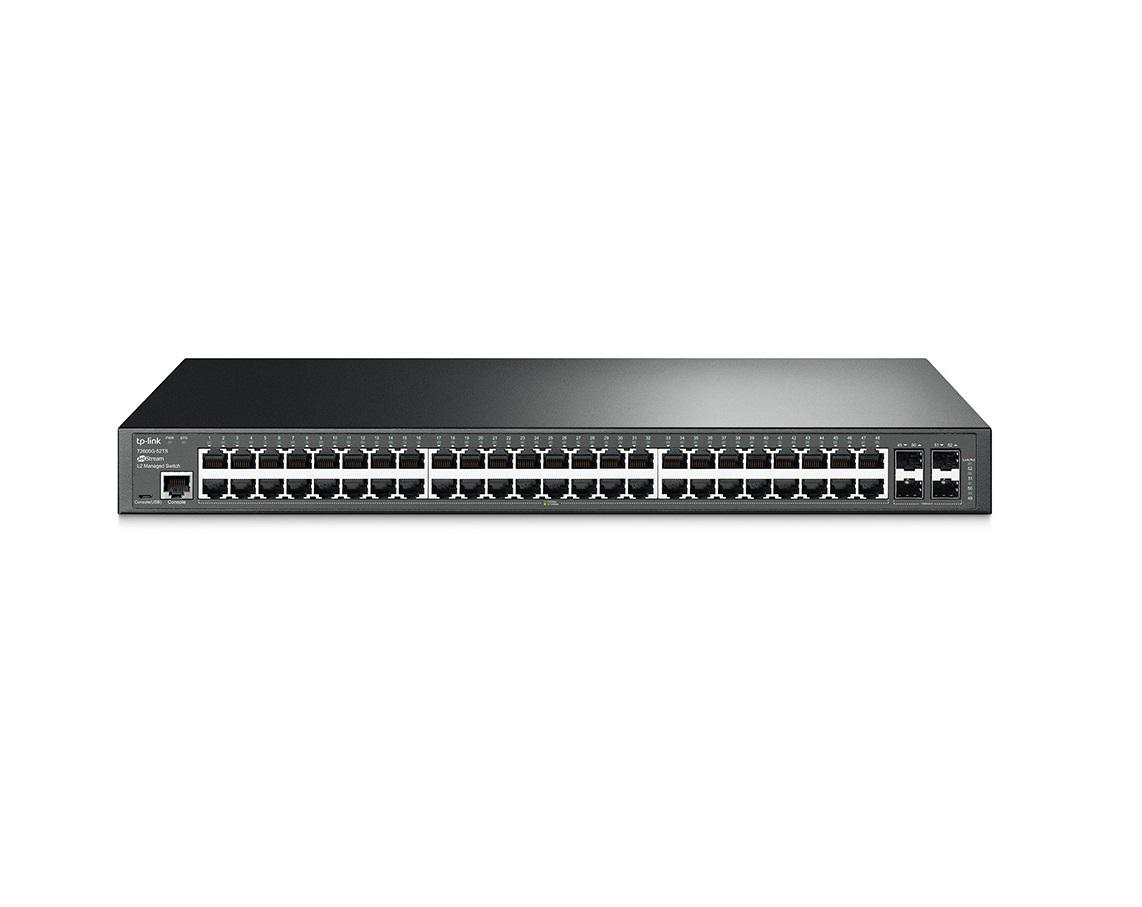

TL SW JETSTREAM 48-PORT GB L2 MANAGED

"JetStream™ 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots PORT: 48× Gigabit RJ45 Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 60 luni


Specificatii tehnice

Layer: Layer-2
Certification: CE, FCC, RoHS
Jumbo frames support: Yes
Static route: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Switching capacity: 104 Gbit/s
Store-and-forward: Yes
Forwarding rate: 77.4 Mpps
Product colour: Black
Rack mounting: Yes
Form factor: 1U
Stackable: No
Harmonized System (HS) code: 85176990
MIB support: Yes
ARP inspection: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Configuring Location Settings (CLI): Yes
Cloud-managed: Yes
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Head-of-line (HOL) blocking: Yes
IP routing: Yes
Number of VLANs: 4000
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv4 routes: 48
IPv6 routes: 48
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Flow control support: Yes
VLAN support: Yes
Port mirroring: Yes
Policy-based routing: Yes
Link aggregation: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 118.94 BTU/h
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Quick start guide: Yes
Cables included: AC
Rack mount kit: Yes
Package height: 100 mm
Package depth: 336 mm
Package weight: 4.26 kg
Package width: 528 mm
Flash memory: 32 MB
Fanless: Yes
SFP module slots quantity: 4
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 48
Console port: RJ-45/Micro-USB
Gigabit Ethernet (copper) ports quantity: 48
Power supply included: Yes
Power consumption (max): 34.86 W
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power over Ethernet (PoE): No
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Authentication type: AAA, RADIUS, TACACS+
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
BPDU filtering/protection: Yes
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Depth: 220 mm
Width: 440 mm
Height: 44 mm
LAN-Ports: 48
Rackable: No
LAN-Port-Type: Gigabit
Redundant-PSU: No
