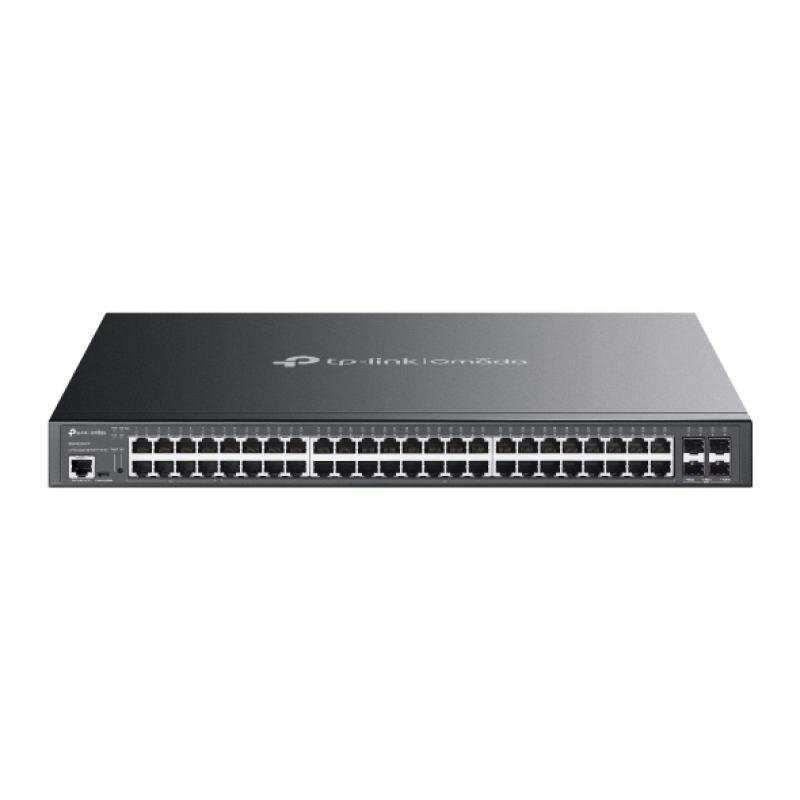

Switch TP-Link 40 porturi PoE+

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40- Port PoE+ & 8-Port PoE++ PORT: 40× Gigabit PoE+ Ports, 8×Gigabit PoE++ Ports (max 90W/port), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 750 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Garantie: 60 luni


Specificatii tehnice

Layer: Layer-2
Certification: CE, FCC, RoHS
Switching capacity: 176 Gbit/s
Store-and-forward: Yes
Packet buffer memory: 12 MB
Forwarding rate: 130.9 Mpps
Jumbo frames support: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Form factor: 1U
Stackable: No
Number of fans: 3 fan(s)
Reset button: Yes
Rack mounting: Yes
Product colour: Black
LED indicators: Yes
Cloud-managed: Yes
ARP inspection: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Switch layer: L2
Configuring Location Settings (CLI): Yes
Multicast support: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Flow control support: Yes
Rate limiting: Yes
10G support: Yes
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Head-of-line (HOL) blocking: Yes
Heat dissipation: 2169.2 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Quick start guide: Yes
Cables included: AC
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 48
Power supply included: Yes
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 635.7 W
Power over Ethernet plus (PoE+) ports quantity: 40
Total Power over Ethernet (PoE) budget: 750 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Power over Ethernet (PoE): Yes
SSH/SSL support: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
DHCP features: DHCP client, DHCP relay, DHCP server
Authentication: Auto VLAN, Guest VLAN
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Static port security: Yes
Width: 440 mm
Height: 44 mm
Depth: 330 mm
LAN-Ports: 24
Rackable: Yes
LAN-Port-Type: Gigabit
Redundant-PSU: Yes
