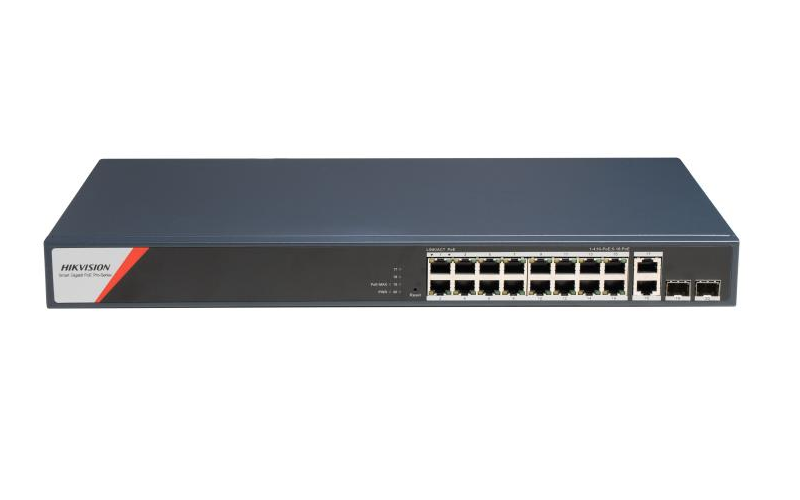

SWITCH GIGABIT 16 PORTURI SMART

Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45, 8 porturi PoE maxim 90W, buget PoE 230W, tensiune alimentare: 100-240V~ 50/60Hz 4 A, dimensiuni: 440 mm × 44 mm × 220.8 mm, greutate: 2.73kg, montare pe birou sau in rack.
Garantie: 36 luni


Specificatii tehnice

Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Switching capacity: 56 Gbit/s
Forwarding rate: 29.76 Mpps
Rack mounting: Yes
Housing material: Metal
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
VLAN support: Yes
Link aggregation: Yes
Rate limiting: Yes
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Cable length detection: Yes
Number of VLANs: 4094
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 45 °C
Storage relative humidity (H-H): 5 - 95%
Package weight: 3.31 kg
Basic switching RJ-45 Ethernet ports quantity: 18
Gigabit Ethernet (copper) ports quantity: 18
Power connector: AC-in jack
Fiber ports quantity: 2
Installed SFP+ modules quantity: 0
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber optic connector: SFP
Surge protection: Yes
Surge protection voltage: 6 kV
Power consumption (max): 250 W
Power source: AC/PoE
AC input voltage: 100 - 240 V
Total Power over Ethernet (PoE) budget: 230 W
Power over Ethernet (PoE) ports quantity: 16
Power over Ethernet (PoE): Yes
IP Source Guard (IPSG): Yes
DHCP features: DHCP client, DHCP snooping
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Loop protection: Yes
Access Control List (ACL): Yes
Access Control List (ACL) rules: 128
Depth: 220.8 mm
Width: 440 mm
Height: 44 mm
Weight: 2.73 kg
