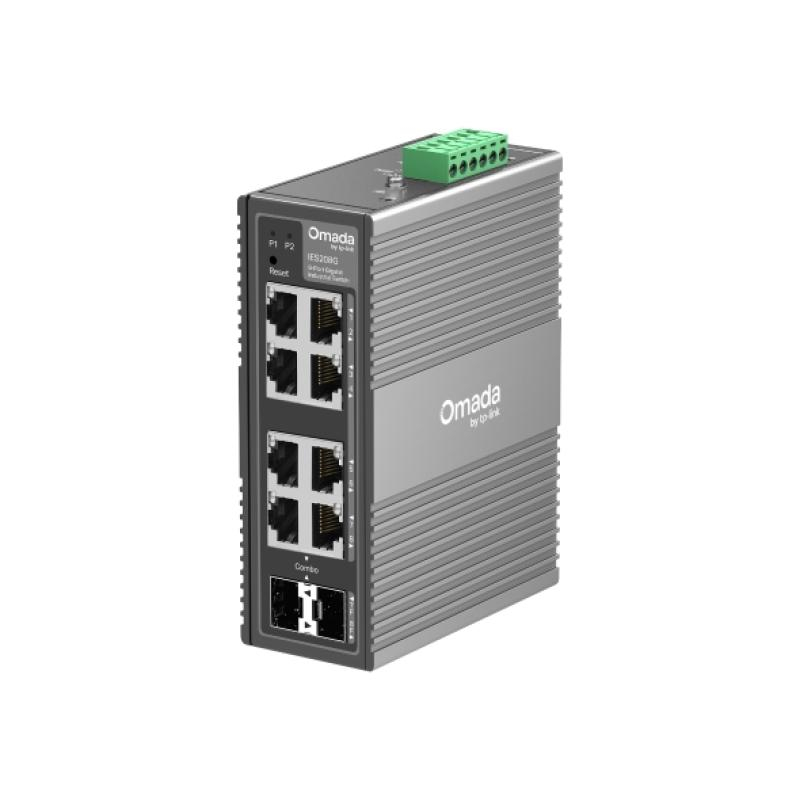

Omada 8-Port Gigabit Industrial Switch

Omada 8-Port Gigabit Industrial Easy Managed Switch 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo) Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input Abundant Features: VLAN, QoS, and STP/RSTP Centralized Cloud Management via the Web or Omada App† Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Garantie: 36 luni


Specificatii tehnice

Jumbo frames support: Yes
MAC address table: 8000 entries
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
Jumbo frames: 15000
DIN rail mounting: Yes
Wall mountable: Yes
Stackable: No
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Cloud-managed: Yes
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port mirroring: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Auto-negotiation: Yes
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 6
Redundant power supply (RPS) support: Yes
DC input voltage: 9.6 - 60 V
Power source: DC
Power over Ethernet (PoE): No
IGMP snooping: Yes
Static port security: Yes
Width: 129 mm
Depth: 95 mm
Height: 45 mm
Rackable: No
LAN-Port-Type: FastEthernet
Redundant-PSU: No
LAN-Ports: 5
