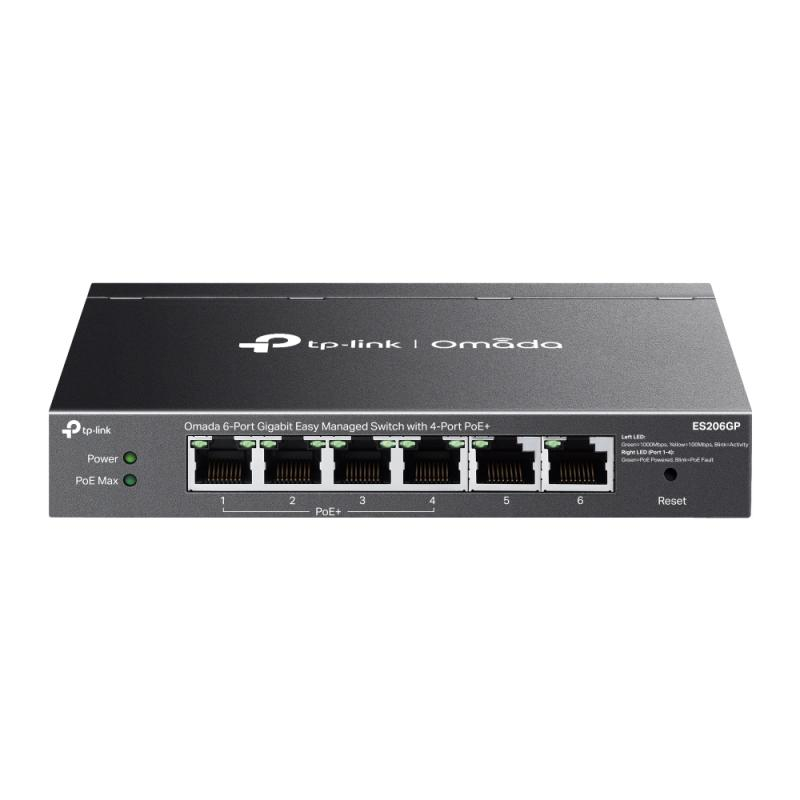

Omada 6-Port Gigabit EasyManaged Switch

Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ PORT: 4× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports SPEC: 802.3at/af, 65W PoE Power, Desktop Steel Case and Fanless FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Fast PoE, Perpetual PoE, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 60 luni


Specificatii tehnice

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Switching capacity: 12 Gbit/s
Forwarding rate: 7.4 Mpps
Jumbo frames: 15
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Store-and-forward: Yes
Stackable: No
Reset button: Yes
LED indicators: Yes
Product colour: Black
Wall mountable: Yes
Cloud-managed: Yes
Unified static configuration: Yes
Firmware upgradeable: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
10G support: No
Auto MDI/MDI-X: Yes
Flow control support: Yes
Auto-negotiation: Yes
Zero Touch Provisioning (ZTP): Yes
Fast leave: Yes
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -5 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Transmission distance (max): 0.25 km
User guide: Yes
AC adapter included: Yes
Package type: Box
Fanless: Yes
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 6
Basic switching RJ-45 Ethernet ports quantity: 6
Power source: DC
Power supply included: Yes
Surge protection: Yes
DC input voltage: 53.5 V
Input current: 1.31 A
Surge protection voltage: 6 kV
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 65 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet (PoE): Yes
IGMP snooping: Yes
Loop protection: Yes
DHCP features: DHCP client
Queue scheduling algorithms: Weighted Round Robin (WRR)
Depth: 101 mm
Width: 158 mm
Height: 25 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
