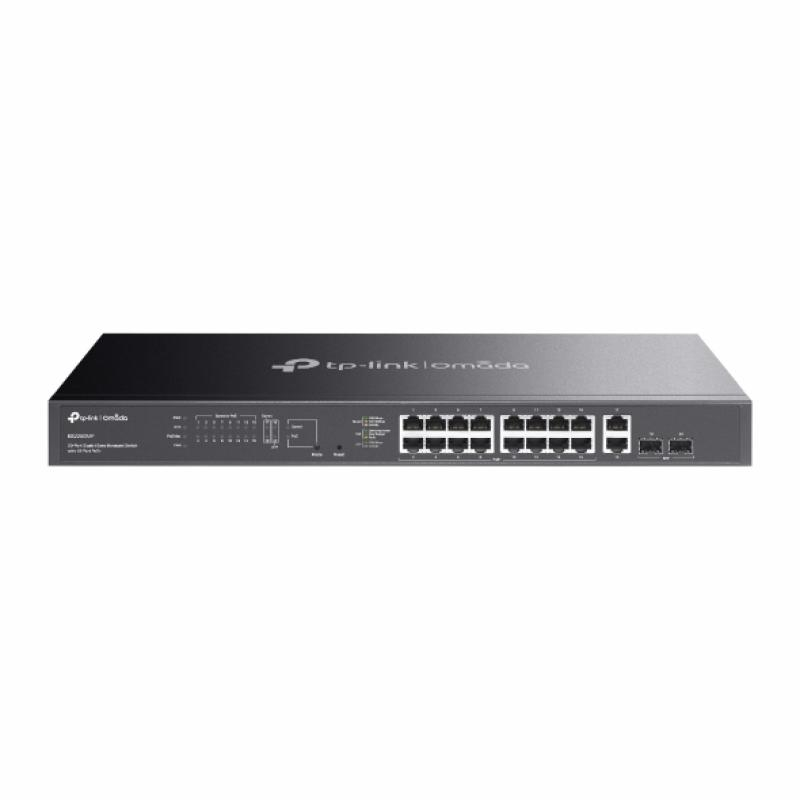

Omada 20-Port Switch ES220GMP

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 2× Gigabit SFP Ports SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Fast PoE, Perpetual PoE, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 36 luni


Specificatii tehnice

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Store-and-forward: Yes
Jumbo frames: 15000
Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Stackable: No
Number of fans: 2 fan(s)
Rack mounting: Yes
Product colour: Black
LED indicators: Yes
Cloud-managed: Yes
Unified static configuration: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Firmware upgradeable: Yes
Switch layer: L2
Auto MDI/MDI-X: Yes
Flow control support: Yes
Auto-negotiation: Yes
10G support: No
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Zero Touch Provisioning (ZTP): Yes
Fast leave: Yes
Number of VLANs: 32
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 50 °C
Heat dissipation: 984.88 BTU/h
Storage relative humidity (H-H): 5 - 90%
Rack mount kit: Yes
User guide: Yes
Cables included: AC
Package type: Box
Noise level: 41.5 dB
Mean time between failures (MTBF): 310550.7 h
Flash memory: 64 MB
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 18
Gigabit Ethernet (copper) ports quantity: 18
Surge protection voltage: 6 kV
Power consumption (max): 289.7 W
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Surge protection: Yes
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 250 W
Queue scheduling algorithms: Weighted Round Robin (WRR)
DHCP features: DHCP client
Loop protection: Yes
IGMP snooping: Yes
Depth: 180 mm
Width: 440 mm
Height: 44 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
