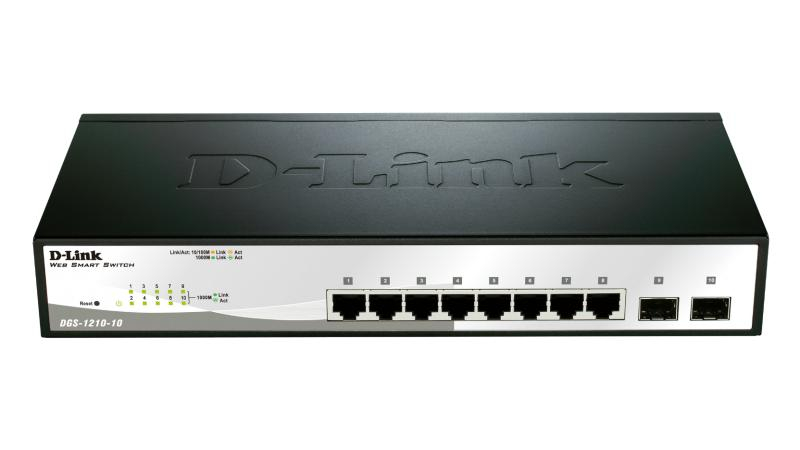

DLINK SW 8P-GB 2CMB SMART RM

Jumbo frames support: Yes

MAC address table: 8000 entries

Switching capacity: 20 Gbit/s

Forwarding rate: 14.88 Mpps

Packet buffer memory: 4.1 MB

Store-and-forward: Yes

Jumbo frames: 10000

Product colour: Black, Grey

LED indicators: Yes

Stackable: Yes

Rack mounting: Yes

Form factor: 1U

VLAN support: Yes

Quality of Service (QoS) support: Yes

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Flash memory: 32 MB

Flow control support: Yes

Mean time between failures (MTBF): 1380058 h

Harmonized System (HS) code: 85176990

Configuring Location Settings (CLI): Yes

Switch layer: L2

ARP inspection: Yes

MIB support: Y

Web-based management: Yes

System event log: Yes

Switch type: Managed

Multicast support: Yes

Auto MDI/MDI-X: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

10G support: No

Broadcast storm control: Yes

Spanning tree protocol: Yes

Port mirroring: Yes

Full duplex: Yes

Power over Ethernet (PoE): No

Link aggregation: Yes

Head-of-line (HOL) blocking: Yes

Number of VLANs: 256

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): -5 - 50 °C

Heat dissipation: 21.59 BTU/h

Storage relative humidity (H-H): 5 - 90%

Package width: 286 mm

Package height: 70 mm

Package depth: 325 mm

Package weight: 2.08 kg

Noise level: 0 dB

Memory type: DDR3-SDRAM

Power connector: AC-in jack

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 8

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP module slots quantity: 2

Installed SFP modules quantity:

SFP+ module slots quantity: 2

Power source: AC

Power consumption (max): 6.33 W

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Power supply included: Yes

MAC address filtering: Yes

Access Control List (ACL): Yes

IGMP snooping: Yes

DHCP features: DHCP client

Loop protection: Yes

Master (outer) cases per pallet (sea): 54 pc(s)

Products per pallet (sea): 270 pc(s)

Pallet gross width: 120 cm

Pallet gross length: 110 cm

Master (outer) cases per pallet (air): 36 pc(s)

Products per shipping (inner) case: 5 pc(s)

Shipping (inner) case height: 31.7 cm

Shipping (inner) case width: 34.6 cm

Shipping (inner) case length: 38.2 cm

Products per pallet (air): 180 pc(s)

Pallet height (air): 140.3 cm

Pallet height (sea): 2.04 m

Shipping (inner) case net weight: 10.4 kg

Pallet gross weight (air): 425.5 kg

Pallet gross weight (sea): 625.9 kg

Shipping (inner) case gross weight: 11.1 kg

Depth: 126 mm

Height: 44 mm

Weight: 980 g

Width: 280 mm

LAN port type: Gigabit

Layer: Unmanaged

Rackable: Yes

LAN-Ports: 8

Redundant-PSU: No

Garantia Produsului: 60 luni
