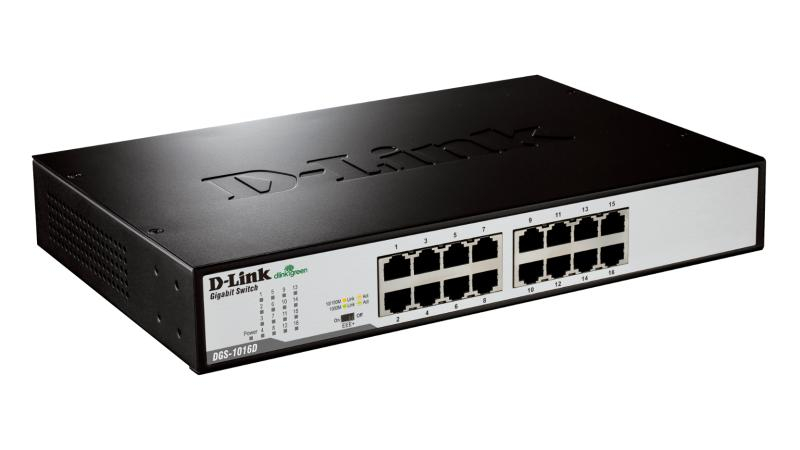

DLINK SW 16P-GB UNMNGD DESK

Certification: cUL/ULnCE LVDnCCCnCBnBSMI

Jumbo frames support: Yes

Number of queues: 8

MAC address table: 8000 entries

Switching capacity: 32 Gbit/s

Packet buffer memory: 0.5 MB

Store-and-forward: Yes

Packet forwarding rate (1 Gbps): 14880 pps

Packet forwarding rate (10 Mbps): 1488000 pps

Forwarding rate: 23.81 Mpps

Maximum data transfer rate: 1 Gbit/s

Jumbo frames: 10000

Packet forwarding rate (100 Mbps): 148800 pps

Product colour: Black, Silver

Housing material: Metal

Stackable: Yes

Rack mounting: Yes

Form factor: 1U

Electromagnetic compatibility: ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC

LED indicators: Activity, Link, Power, Speed

Mean time between failures (MTBF): 1882372 h

Quality of Service (QoS) support: Yes

Flow control support: Yes

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Power over Ethernet (PoE): No

Auto MDI/MDI-X: Yes

Active link detection: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

MAC address auto-aging supported: Yes

10G support: No

Broadcast storm control: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T

MAC address auto-learning supported: Yes

Full duplex: Yes

Operating relative humidity (H-H): 0 - 95%

Storage temperature (T-T): -10 - 70 °C

Storage relative humidity (H-H): 0 - 95%

Operating temperature (T-T): 0 - 40 °C

Heat dissipation: 34.3 BTU/h

Package height: 108 mm

Package depth: 328 mm

Package width: 180 mm

Package weight: 1.71 kg

Noise level: 0 dB

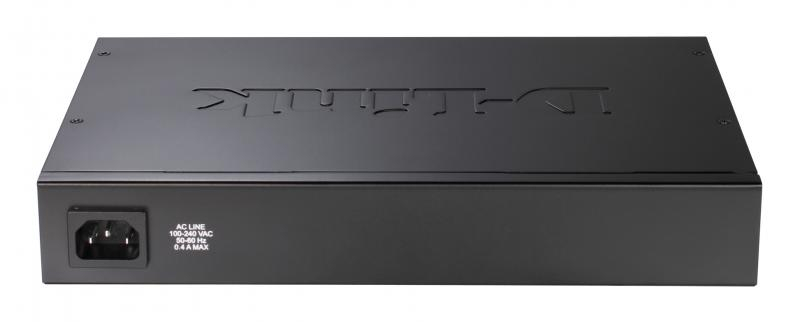

Power connector: AC-in jack

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 16

Installed SFP+ modules quantity:

Power supply included: Yes

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Input current: 0.2 A

Power consumption (max): 10.07 W

Power consumption (typical): 11.7 W

Master (outer) cases per pallet (sea): 50 pc(s)

Shipping (inner) case width: 19.7 cm

Pallet gross width: 120 cm

Master (outer) cases per pallet (air): 30 pc(s)

Pallet height (sea): 193 cm

Pallet gross length: 110 cm

Shipping (inner) case height: 35.9 cm

Shipping (inner) case length: 57.2 cm

Shipping (inner) case net weight: 8.54 kg

Pallet gross weight (air): 295.7 kg

Products per pallet (air): 150 pc(s)

Pallet height (air): 121.2 cm

Pallet gross weight (sea): 480.3 kg

Products per pallet (sea): 250 pc(s)

Shipping (inner) case gross weight: 9.21 kg

Products per shipping (inner) case: 5 pc(s)

Depth: 125 mm

Height: 44 mm

Weight: 1.02 kg

Width: 280 mm

LAN port type: Gigabit

Garantia Produsului: 24 luni
