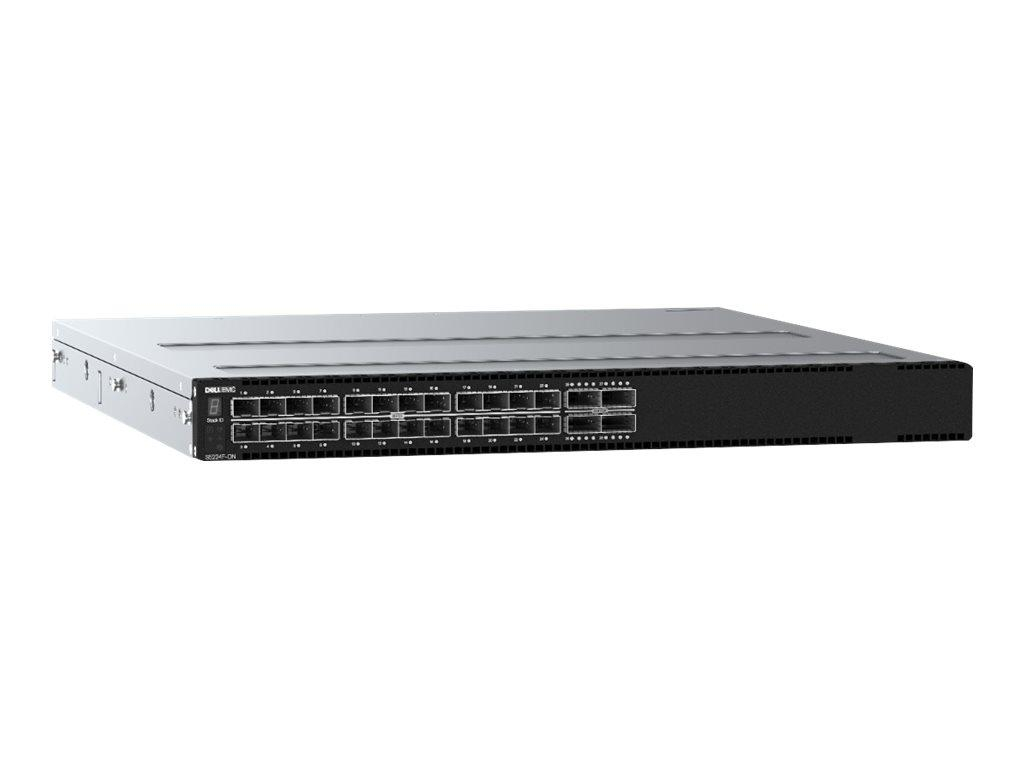

Dell EMC S5224F-ON Switch

Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28 PORTS IO TO PSU AIR 2X PSU OS10, 1Yr
Garantie: 12 luni


Specificatii tehnice

PoE: Nu
Management: Da
Montare in rack: Da, 1RU
Greutate: 9.7 kg
Memorie: 8 GB
Memorie Flash: 16 GB
Alimentare: 2x PSU
Caracteristici speciale: Flow control, full duplex capability, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Pro...
Conectori: 1x port RJ45 consola/management cu RS232
Dimensiuni: 460 x 44 x 434 mm
Layer: Layer 3
Memorie Buffer: 32 MB
Metoda forwarding: 720 Mpps (1.42 Bpps full duplex)
Numar porturi: 24x SFP28
4x QSFP28 (uplink)
Protocoale de rutare: OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, MLDv3, MSTP
Putere consumata (W): Maximum: 455 W
Tipic: 200 W
Remote Management Protocol: SNMP 1, Telnet, SNMP 2c, TFTP, SSH-2, CLI, NTP
Rutare IP: IPv4: 128000
IPv6: 64000
Securitate: MD5, RADIUS, TACACS, Secure Shell v.2 (SSH2)
Sistem de operare: Dell SmartFabric OS10
Standarde: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1588v2
Switch capacity: 1.08 Tbps (2.16 Tbps full duplex)
Tabela de adrese MAC: 288K
Tehnologie de cablare: Base-X SFP28
Tensiune de intrare: 100–240 VAC 50/60 Hz
Tip Switch: Retea Fibra Optica
Viteza transfer LAN: 25 Gbps
Porturi RJ 45: 24 - 32
Porturi SFP: 24X 25GBE SFP28
Viteza Transfer: 10G+
