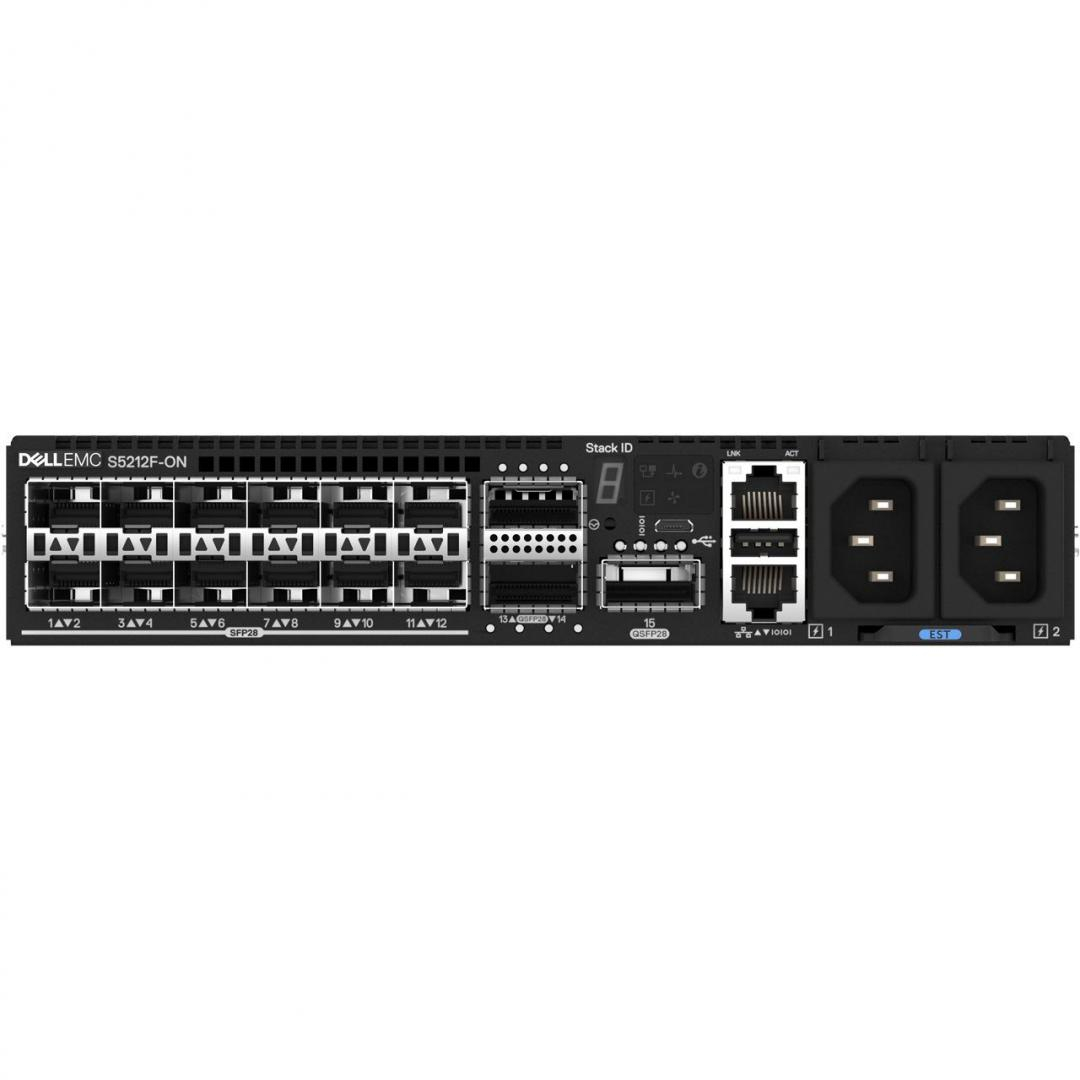

Dell EMC S5212F-ON Switch

Dell EMC S5212F-ON Switch, 12x 25GbE SFP28, 3x 100GbE QSFP28 ports, IO to PSU air, 2x PSU, 3Yr ProSupport + NBD


Specificatii tehnice

Greutate: 4.5 kg
PoE: Nu
Management: Da
Montare in rack: Da, 1RU
Memorie: 8 GB
Memorie Flash: 16 GB
Alimentare: 2x PSU
Caracteristici speciale: Flow control, full duplex capability, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Pro...
Conectori: 1x port RJ45 consola/management cu RS232
Protocoale de rutare: OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, MLDv3, MSTP
Remote Management Protocol: SNMP 1, Telnet, SNMP 2c, TFTP, SSH-2, CLI, NTP
Rutare IP: IPv4: 128000
IPv6: 64000
Securitate: MD5, RADIUS, TACACS, Secure Shell v.2 (SSH2)
Standarde: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1588v2
Switch capacity: 1.08 Tbps (2.16 Tbps full duplex)
Tabela de adrese MAC: 288K
Tehnologie de cablare: Base-X SFP28
Tensiune de intrare: 100–240 VAC 50/60 Hz
Tip Switch: Retea Fibra Optica
Viteza transfer LAN: 25 Gbps
Dimensiuni: 490 x 41 x 209 mm
Metoda forwarding: 440 Mpps (880 Mpps full duplex)
Numar porturi: 12x SFP28
3x QSFP28 (uplink)
Putere consumata (W): Maximum: 304 W
Tipic: 140 W
Layer: Layer 3
Memorie Buffer: 32 MB
Porturi RJ 45: 8 - 16
Porturi SFP: 12x 25GbE SFP28
Viteza Transfer: 10G+
