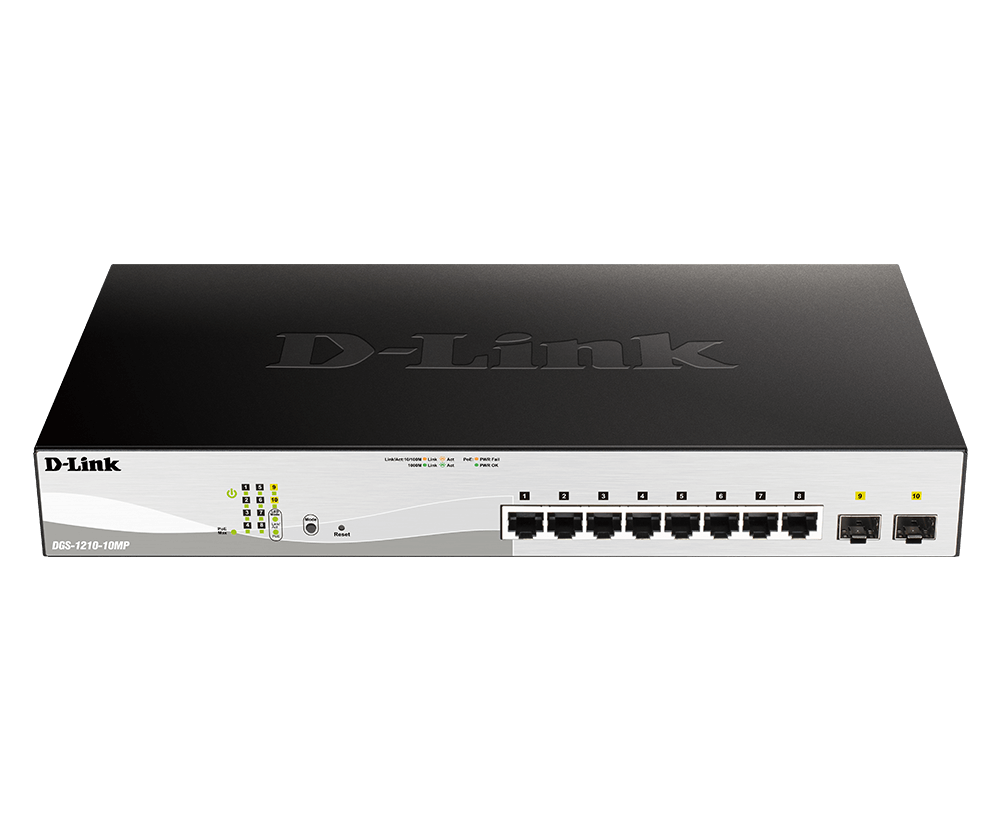

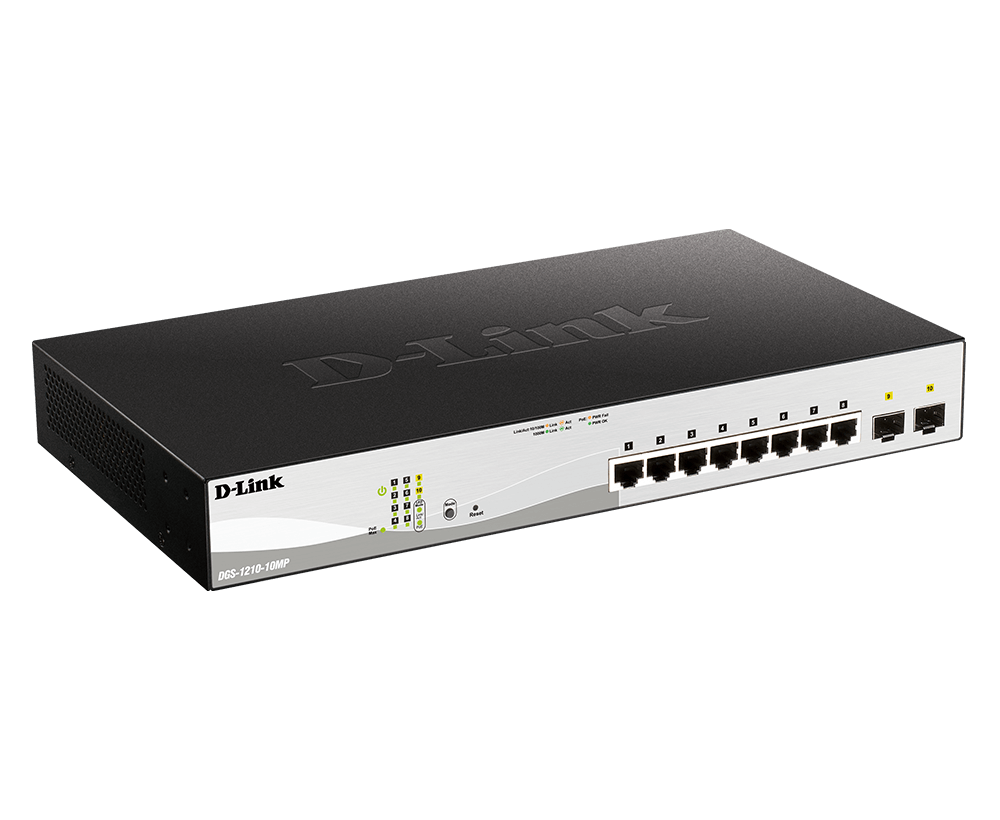

D-LINK SW 8P-GB POE+ 2SFP MNG POE

D-Link Switch 10 porturi POE smart maaged DGS-1210-10MP, Interfata: 8 x 10/100/1000Mbps, 2 x100/1000 SFP, Capacitate switch: 20 Gbps, Memorie: 128Mb DDR3, Flash 32Mb, Auto MDI/MDIX, Buget POE: 130W, Dimensiuni: 330 x 180 x 44 mm, Greutate: 1.77kg.
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 14.88 Mpps
LED indicators: Activity, Link, Power, Speed
Compliance certificates: BSMI, CB, CCC, cUL
Certification: CE A, VCCI A, FCC A, BSMI, CCC
Jumbo frames: 10000
Number of static routes: 256
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
MAC address table: 8000 entries
Switching capacity: 20 Gbit/s
Jumbo frames support: Yes
Static route: Yes
Product colour: Black
Safety: CB, UL, BSMI, CCC
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flash memory: 32 MB
Flow control support: Yes
Noise level: 0 dB
Mean time between failures (MTBF): 1274005 h
Harmonized System (HS) code: 85176990
Switch layer: L2/L3
ARP inspection: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Firmware upgradeable: Yes
Multicast support: Yes
10G support: No
Half duplex: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Head-of-line (HOL) blocking: Yes
Number of VLANs: 4094
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Full duplex: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Security algorithms: 802.1x RADIUS, EAP, MD5, PEAP, SNMP, SSH-2, SSL/TLS, TTLS
Heat dissipation: 519.51 BTU/h
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -20 - 70 °C
Operating temperature (T-T): -5 - 50 °C
Storage relative humidity (H-H): 0 - 95%
Fiber ethernet cabling technology: 100BASE-FX, 1000BASE-X
Package depth: 400 mm
Package height: 91 mm
Package width: 319 mm
Package weight: 31 kg
Maximum cable length: 100 m
Memory type: DDR3-SDRAM
Installed SFP modules quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Fiber optic connector: SFP
Installed SFP+ modules quantity: 0
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity: 8
Power supply included: Yes
Number of power supply units: 1
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 152.3 W
Total Power over Ethernet (PoE) budget: 130 W
Power over Ethernet plus (PoE+) ports quantity: 8
Access Control List (ACL): Yes
IP-MAC-Port binding: Yes
Loop protection: Yes
IGMP snooping: Yes
DHCP features: DHCP server, DHCP client
Access Control List (ACL) rules: 768
Sustainability compliance: Yes
Products per shipping (inner) case: 3 pc(s)
Products per pallet (air): 72 pc(s)
Products per pallet (sea): 120 pc(s)
Shipping (inner) case height: 34.9 cm
Shipping (inner) case width: 29.4 cm
Shipping (inner) case length: 41.6 cm
Shipping (inner) case net weight: 9.31 kg
Pallet gross weight (air): 268.3 kg
Pallet height (air): 118.2 cm
Pallet gross weight (sea): 430.6 kg
Pallet height (sea): 188 cm
Shipping (inner) case gross weight: 10.1 kg
Master (outer) cases per pallet (air): 24 pc(s)
Master (outer) cases per pallet (sea): 40 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Height: 44 mm
Weight: 1.77 kg
Width: 330 mm
Depth: 180 mm
LAN-Port-Type: Gigabit
