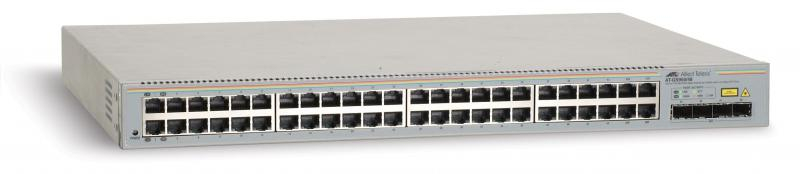

ATI SW 48P GB 4SFP L2 WEBSM ECO

Certification: UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL

Jumbo frames support: Yes

Supported data transfer rates: 10/100/1000 Mbps

MAC address table: 8000 entries

Maximum data transfer rate: 1 Gbit/s

Throughput: 14.88 Mpps

Packet buffer memory: 6 MB

LED indicators: Yes

Product colour: Grey

Rack mounting: Yes

Stackable: No

Form factor: 1U

VLAN support: Yes

Quality of Service (QoS) support: Yes

Rate limiting: Yes

Flow control support: Yes

Flash memory: 4 MB

Mean time between failures (MTBF): 263000 h

Harmonized System (HS) code: 85176990

Switch layer: L2

Web-based management: Yes

Switch type: Managed

MIB support: RFC 1213, RFC 1643, RFC 1493

Multicast support: Yes

10G support: No

Broadcast storm control: Yes

Spanning tree protocol: Yes

Head-of-line (HOL) blocking: Yes

Port mirroring: Yes

Link aggregation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX

Storage temperature (T-T): -25 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 5 - 90%

Storage relative humidity (H-H): 5 - 95%

Security features: 802.1X

Dimensions (WxDxH): 444 x 322 x 43.5 mm

Packet transfer speed: 1488000 pps

Power requirements: 100-240V AC, 50/60Hz

Connectivity technology: Wired

Combo SFP ports quantity: 4

SFP/SFP+ slots quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 48

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power connector: DC-in jack

Console port: RJ-45

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Management protocols: IGMP, SNMP, FTP

IGMP snooping: Yes

MAC address filtering: Yes

DHCP features: DHCP client

Static port security: Yes

Height: 43.5 mm

Weight: 4.05 kg

Width: 444 mm

Depth: 322 mm

LAN port type: Gigabit

Garantia Produsului: 24 luni
