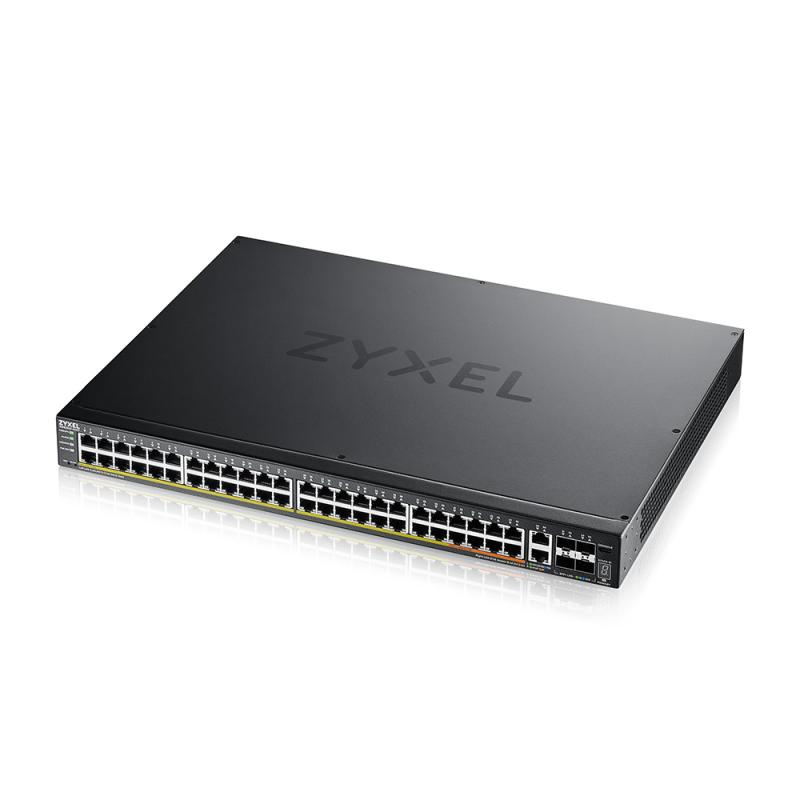

ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE

ZY XGS2220-54 48GBE 2x10mG 4x10G SW POE
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 161 Mpps
Packet buffer memory: 2 MB
MAC address table: 32000 entries
Switching capacity: 216 Gbit/s
Jumbo frames support: Yes
Rack mounting: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Switch layer: L3
ARP inspection: Yes
Multicast Listener Discovery (MLD) snooping: MLD v1/v2
10G support: Yes
Routing entries: 64
Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): -20 - 50 °C
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 195.43 BTU/h
Storage temperature (T-T): -40 - 70 °C
Flash memory: 64 MB
Mean time between failures (MTBF): 298.735 h
Installed SFP+ modules quantity: 4
10G Ethernet (copper) ports quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power supply included: Yes
Power source: AC
Power consumption (max): 1161.6 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE) ports quantity: 50
Total Power over Ethernet (PoE) budget: 960 W
Power over Ethernet (PoE): Yes
GARP VLAN Registration Protocol (GVRP): Yes
IGMP snooping: Yes
DHCP features: DHCP relay, DHCP server
IGMP proxy: Yes
Authentication type: IEEE 802.1x, RADIUS, TACACS+
Depth: 330 mm
Weight: 5 kg
Height: 44 mm
Width: 441 mm
LAN-Port-Type: Gigabit
