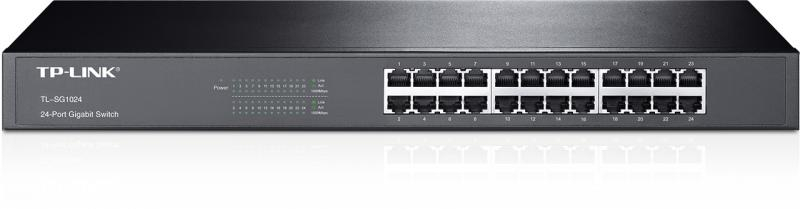

TPL SW 24P-GB UNMNGD RM

Certification: FCC, CE, RoHS

Switching capacity: 48 Gbit/s

Jumbo frames: 10000

Forwarding rate: 35.7 Mpps

Jumbo frames support: Yes

Supported data transfer rates: 10/100/1000 Mbps

MAC address table: 8000 entries

Store-and-forward: Yes

Maximum data transfer rate: 1 Gbit/s

Rack mounting: Yes

Form factor: 1U

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Quality of Service (QoS) support: Yes

Switch type: Unmanaged

Full duplex: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T

10G support: No

Half duplex: Yes

Heat dissipation: 46.44 BTU/h

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 32 - 104 °F

Storage relative humidity (H-H): 5 - 90%

Connectivity technology: Wired

Connectivity LEDs: Y

Bandwidth: 48 Gbit/s

Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7)

Cables included: AC

Rack mount kit: Yes

Package width: 250 mm

Package weight: 2.13 kg

Package depth: 528 mm

Installed SFP modules quantity:

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 24

Gigabit Ethernet (copper) ports quantity: 24

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power supply included: Yes

Power consumption (max): 13.62 W

Power source: AC

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Supported network protocols: CSMA/CD, TCP/IP

Depth: 180 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
