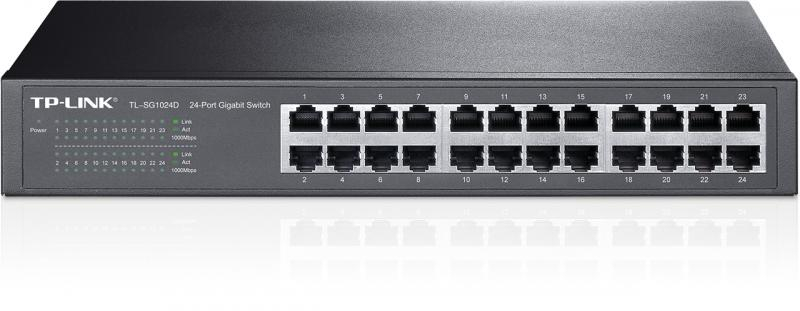

TPL SW 24P-GB UNMNGD DESK/RM

Certification: FCC, CE, RoHS

Switching capacity: 48 Gbit/s

Jumbo frames: 10000

Forwarding rate: 35.7 Mpps

Maximum data transfer rate: 1 Gbit/s

Supported data transfer rates: 10/100/100 Mbps

Jumbo frames support: Yes

MAC address table: 8000 entries

Store-and-forward: Yes

Stackable: Yes

Rack mounting: Yes

LED indicators: Yes

Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Quality of Service (QoS) support: Yes

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Power over Ethernet (PoE): No

Auto MDI/MDI-X: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Full duplex: Yes

Auto-negotiation: Yes

10G support: No

Heat dissipation: 46.44 BTU/h

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Operating temperature (T-T): 32 - 104 °F

Connectivity technology: Wired

Power requirements: 100 - 240V, 50/60Hz

Dimensions (WxDxH): 294 x 180 x 44 mm

Networking features: Gigabit Ethernet

Connectivity LEDs: Y

Bandwidth: 48 Gbit/s

Cables included: AC

Rack mount kit: Yes

Package type: Box

Package height: 80 mm

Package width: 250 mm

Package depth: 400 mm

Package weight: 1.95 kg

Basic switching RJ-45 Ethernet ports quantity: 24

Gigabit Ethernet (copper) ports quantity: 24

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power connector: DC-in jack

Power supply included: Yes

AC input voltage: 100 - 240 V

Power source: AC

AC input frequency: 50 - 60 Hz

Power consumption (max): 13.62 W

Supported network protocols: CSMA/CD, TCP/IP

Depth: 180 mm

Width: 294 mm

LAN-Ports: 24

Rackable: No

Redundant-PSU: Yes

LAN port type: Gigabit

Layer: Unmanaged

Garantia Produsului: 60 luni
