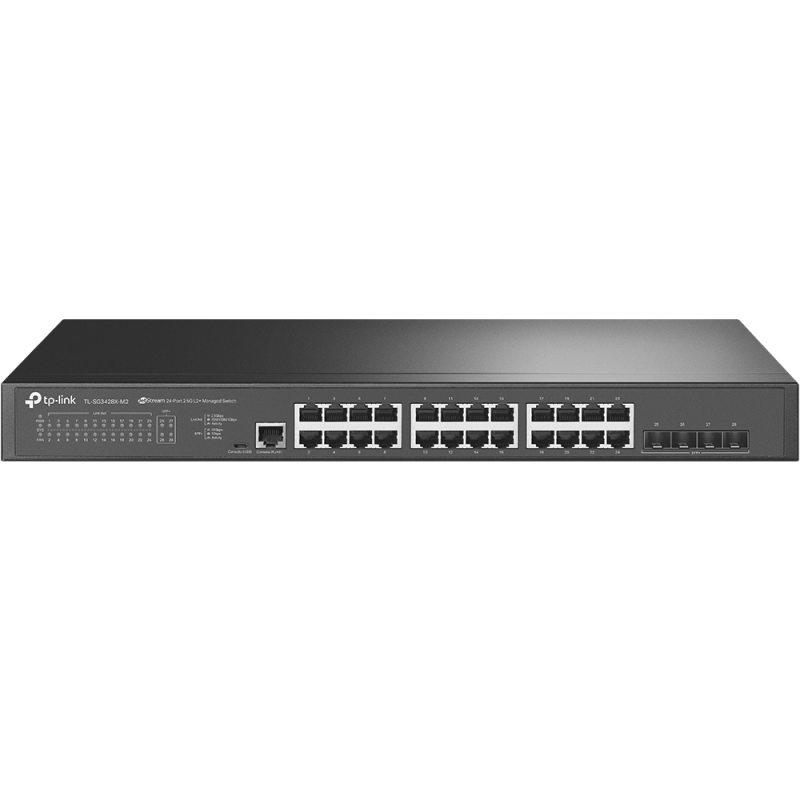

TPL SW 24P-GB 4 10GE SFP L2 MANAGED SW

"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 60 luni


Specificatii tehnice

Layer: Layer-2
Forwarding rate: 14.88 Mpps
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: CE, FCC, RoHS
Store-and-forward: Yes
Number of static routes: 48
MAC address table: 32000 entries
Packet buffer memory: 16 MB
Switching capacity: 200 Gbit/s
Jumbo frames support: Yes
Static route: Yes
Jumbo frames: 9000
Form factor: 1U
Rack mounting: Yes
Number of fans: 1 fan(s)
Stackable: No
Product colour: Black
LED indicators: Yes
Rate limiting: Yes
Switch layer: L2
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
ARP inspection: Yes
Cloud-managed: Yes
MIB support: Yes
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Head-of-line (HOL) blocking: Yes
Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features: Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv4 routes: 48
IPv6 routes: 48
10G support: Yes
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Active link detection: Yes
Flow control support: Yes
Policy-based routing: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 154.38 BTU/h
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Cables included: LAN (RJ-45)
Quick start guide: Yes
Package depth: 250 mm
Package height: 80 mm
Package width: 528 mm
Package weight: 3 kg
2.5G Ethernet (copper) ports quantity: 24
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Installed SFP+ modules quantity: 0
SFP module slots quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 24
Power supply included: Yes
Power consumption (max): 45.1 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power over Ethernet (PoE): No
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Management protocols: SNMP v1/v2c/v3, SNTP
IPv4 FIB entries: 100
IPv6 FIB entries: 100
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protection: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication type: AAA, RADIUS, TACACS+
IP-MAC-Port binding: Yes
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
Access Control List (ACL): Yes
Width: 440 mm
Height: 44 mm
Depth: 180 mm
LAN-Ports: 24
Rackable: Yes
LAN-Port-Type: Gigabit
Redundant-PSU: Yes
