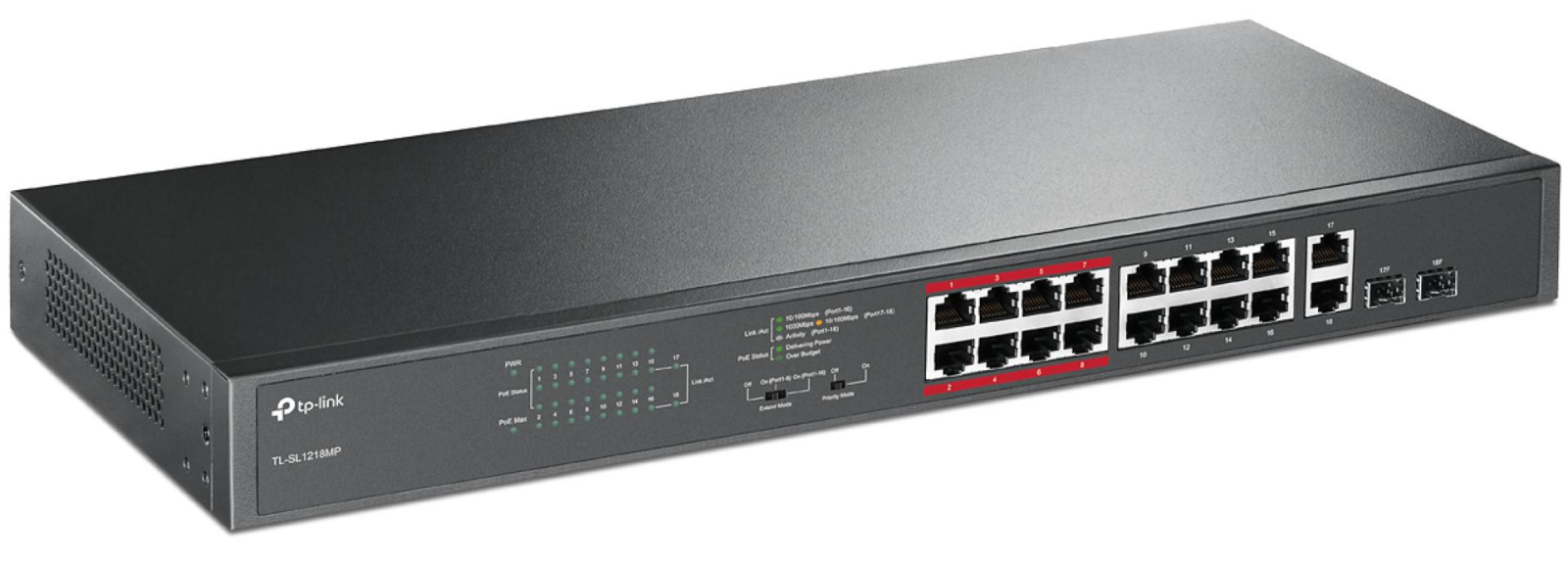

TPL SW 16P-POE ,2P-GB SFP UNMNGD RM

Certification: CE, FCC, RoHS

Store-and-forward: Yes

Jumbo frames support: Yes

MAC address table: 8000 entries

Packet buffer memory: 4.1 MB

Switching capacity: 7.2 Gbit/s

Forwarding rate: 5.36 Mpps

Jumbo frames: 10000

Stackable: No

Number of fans: 2 fan(s)

Rack mounting: Yes

Form factor: 1U

LED indicators: LAN, PoE, Status

Networking standards: IEEE 802.3af, IEEE 802.3at

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

10G support: No

Auto MDI/MDI-X: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Power over Ethernet (PoE): Yes

MAC address auto-aging supported: Yes

MAC address auto-learning supported: Yes

Heat dissipation: 741.15 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Cables included: LAN (RJ-45)

Package width: 250 mm

Package height: 80 mm

Package type: Box

Package depth: 528 mm

Package weight: 2.96 kg

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity: 2

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 20

Fast Ethernet (copper) ports quantity: 16

Gigabit Ethernet (copper) ports quantity: 2

Power supply included: Yes

Power consumption (max): 217.22 W

Power source: AC

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power over Ethernet plus (PoE+) ports quantity: 16

Total Power over Ethernet (PoE) budget: 192 W

Power over Ethernet (PoE) power per port: 30 W

Depth: 180 mm

Garantia Produsului: 60 luni
