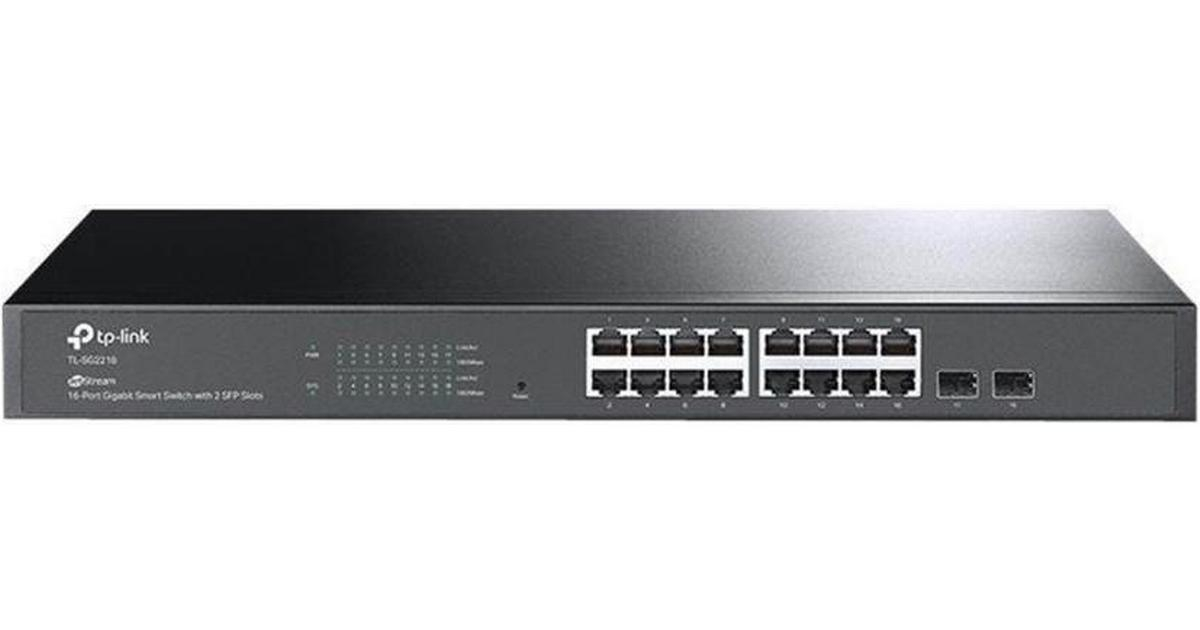

TPL SW 16P-GB 2 SFP SMART RM

"JetStream™ 16-Port Gigabit Smart Switch with 2 Gigabit SFP Slots PORT: 16× Gigabit RJ45 Ports, 2× Gigabit SFP Slots SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 60 luni


Specificatii tehnice

Stackable: No
Layer: Unmanaged
Forwarding rate: 26.8 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Jumbo frames support: Yes
Static route: Yes
MAC address table: 8000 entries
Switching capacity: 36 Gbit/s
Jumbo frames: 9000
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Number of IP interfaces: 16
Number of static routes: 32
Form factor: 1U
Rack mounting: Yes
Product colour: Black
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Harmonized System (HS) code: 85176990
Cloud-managed: Yes
Switch layer: L2/L2+
MIB support: Yes
ARP inspection: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Number of VLANs: 4000
Port mirroring: Yes
Power over Ethernet (PoE): No
Link aggregation: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 41.97 BTU/h
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Cables included: AC, LAN (RJ-45)
Quick start guide: Yes
Package weight: 2.45 kg
Package height: 80 mm
Package width: 250 mm
Package depth: 528 mm
Fanless: Yes
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 16
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Gigabit Ethernet (copper) ports quantity: 16
SFP+ module slots quantity: 2
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 12.3 W
Power supply included: Yes
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, SNTP
SSH/SSL support: Yes
Loop protection: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
BPDU filtering/protection: Yes
IGMP snooping: Yes
Access Control List (ACL): Yes
Depth: 180 mm
Width: 440 mm
Height: 44 mm
LAN port type: Gigabit
Rackable: No
Redundant-PSU: Yes
LAN-Ports: 16
