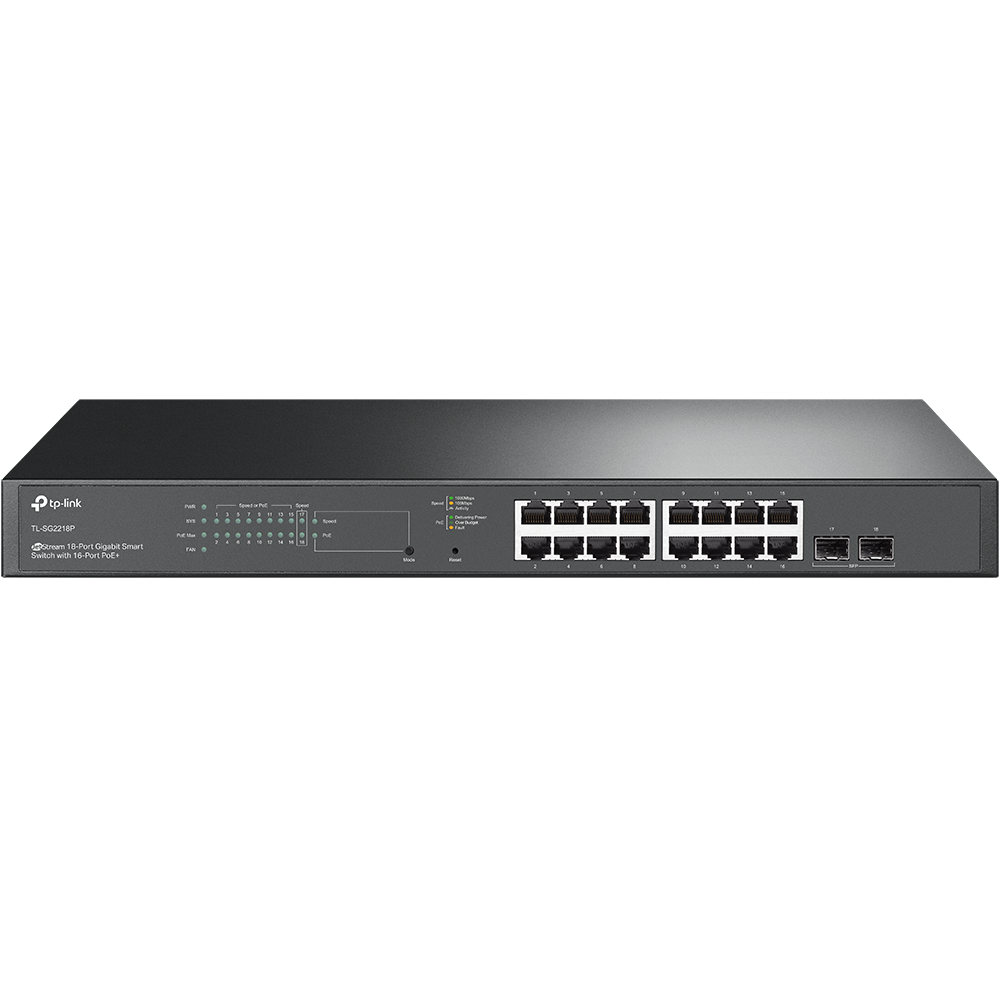

TPL SW 16P-GB 2 SFP SMART RM POE+

"JetStream™ 18-Port Gigabit Smart Switch with 16-Port PoE+ PORT: 16× Gigabit RJ45 Ports, 2× Gigabit SFP Slots SPEC: 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Garantie: 24 luni


Specificatii tehnice

Forwarding rate: 26.78 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Packet buffer memory: 4.1 MB
MAC address table: 8000 entries
Switching capacity: 26.78 Gbit/s
Jumbo frames: 9
Jumbo frames support: Yes
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Ethernet LAN data rates: 10,100,1000 Mbit/s
Quality of Service (QoS) support: Yes
VLAN support: Yes
Flow control support: Yes
Rate limiting: Yes
Cloud-managed: Yes
ARP inspection: Yes
Switch layer: L2/L2+
Configuring Location Settings (CLI): Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Multicast support: Yes
Multicast features: Multicast forwarding
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
IP routing: Yes
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Policy-based routing: Yes
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 619.06 BTU/h
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
User guide: Yes
Cables included: LAN (RJ-45)
Package width: 250 mm
Package weight: 2.76 kg
Package type: Box
Package height: 80 mm
Package depth: 528 mm
SFP+ module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 16
SFP module slots quantity: 2
Installed SFP+ modules quantity: 0
Installed SFP modules quantity: 0
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: DC/PoE
Power consumption (max): 181.4 W
Total Power over Ethernet (PoE) budget: 150 W
DHCP features: DHCP client, DHCP relay, DHCP snooping
Static port security: Yes
Authentication: MAC-based authentication, Port-based authentication
BPDU filtering/protection: Yes
SSH/SSL support: Yes
Loop protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Depth: 180 mm
Width: 440 mm
Height: 44 mm
LAN-Port-Type: Gigabit
