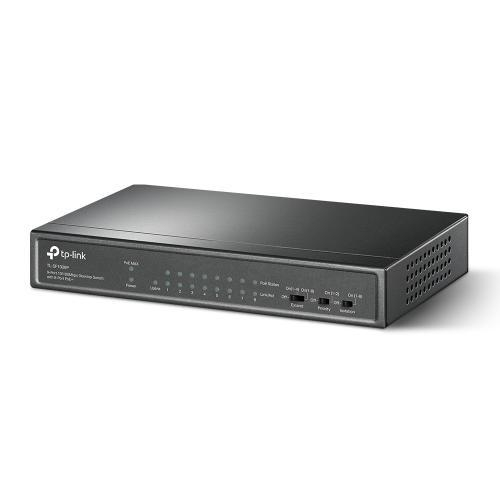

TPL 9P-10/100 8POE DESKTOP SWITCH

Certification: FCC, CE, RoHS

Compliance certificates: Federal Communications Commission (FCC), CE, RoHS

Switching capacity: 1.6 Gbit/s

Forwarding rate: 1.3392 Mpps

MAC address table: 2000 entries

Store-and-forward: Yes

Stackable: No

Rack mounting: No

Housing material: Metal

Wall mountable: Yes

LED indicators: Activity, Link, PoE, Power

Flow control support: Yes

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

10G support: No

Half duplex: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

MAC address auto-aging supported: Yes

MAC address auto-learning supported: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Full duplex: Yes

Power over Ethernet (PoE): Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Heat dissipation: 262.84 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Package type: Box

Package height: 68 mm

Package width: 223 mm

Package depth: 280 mm

Package weight: 980 g

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Power connector: DC-in jack

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 9

Installed SFP modules quantity:

Fast Ethernet (copper) ports quantity: 9

AC input frequency: 50 Hz

Power source: DC/PoE

AC input voltage: 220 V

Power consumption (max): 77.08 W

Power supply included: No

DC input voltage: 53.5 V

Input current: 1.31 A

Power over Ethernet (PoE) power per port: 30 W

Power over Ethernet plus (PoE+) ports quantity: 8

Total Power over Ethernet (PoE) budget: 65 W

Sustainability compliance: Yes

Width: 171 mm

Depth: 98 mm

Height: 27 mm

LAN port type: FastEthernet
