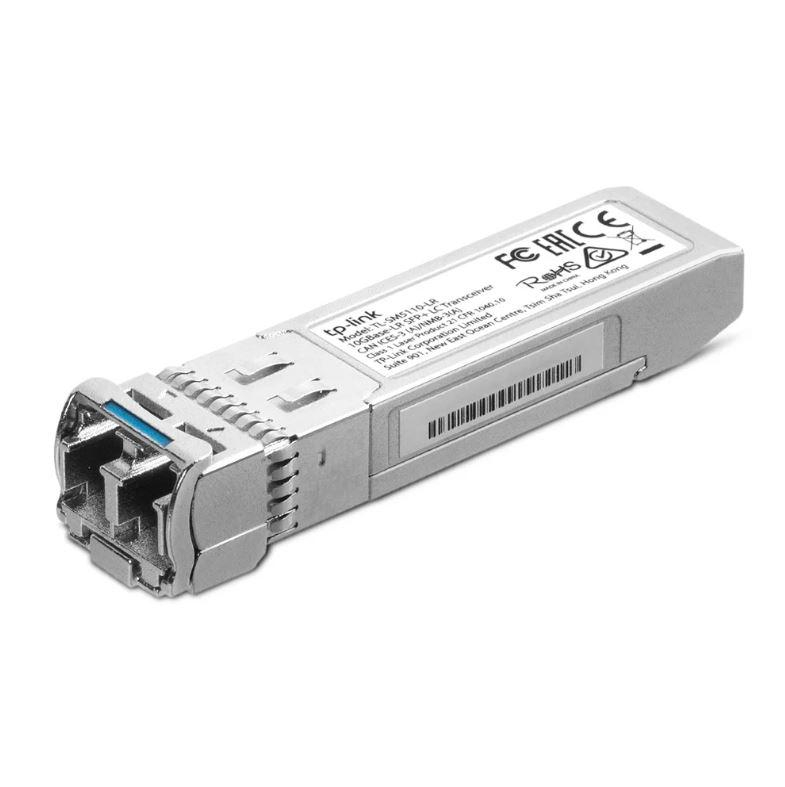

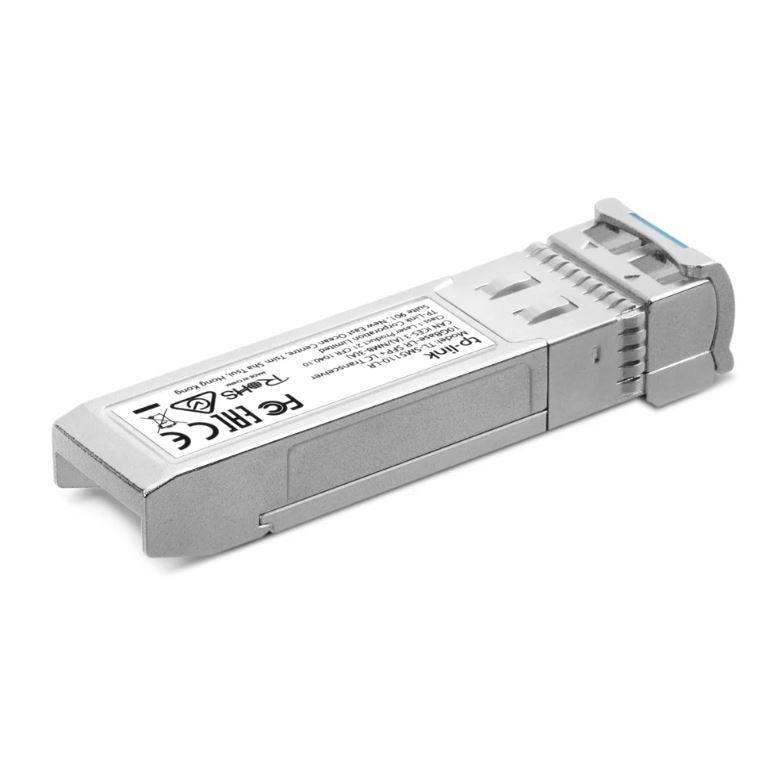

TPL 10GBASE-LR SFP+ LC TRANSCEIVER

"10Gbase-LR SFP+ LC Transceiver SPEC: 1310 nm Single-mode, LC Duplex Connector, Up to 10 km Distance"
Garantie: 60 luni


Specificatii tehnice

Certification: FCC, CE
Compatible products: Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Brand compatibility: TP-Link
Hot-Plug support: Yes
Hot-swap: Yes
Harmonized System (HS) code: 85369010
Duplex system: Full
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 70 °C
Quantity per pack: 1 pc(s)
Package depth: 122.5 mm
Package weight: 60 g
Package height: 385 mm
Package width: 815 mm
Multi-mode fiber (MMF) supported: No
Digital Diagnostics Monitoring (DDM): Yes
SFP transceiver standard: LR
Networking standards: IEEE 802.3ae
Maximum data transfer rate: 10000 Mbit/s
SFP transceiver type: Fiber optic
Interface type: SFP
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Input voltage: 3.3 V
Depth: 139 mm
Height: 103 mm
Width: 56.7 mm
Switch-CM-Type: SFP
