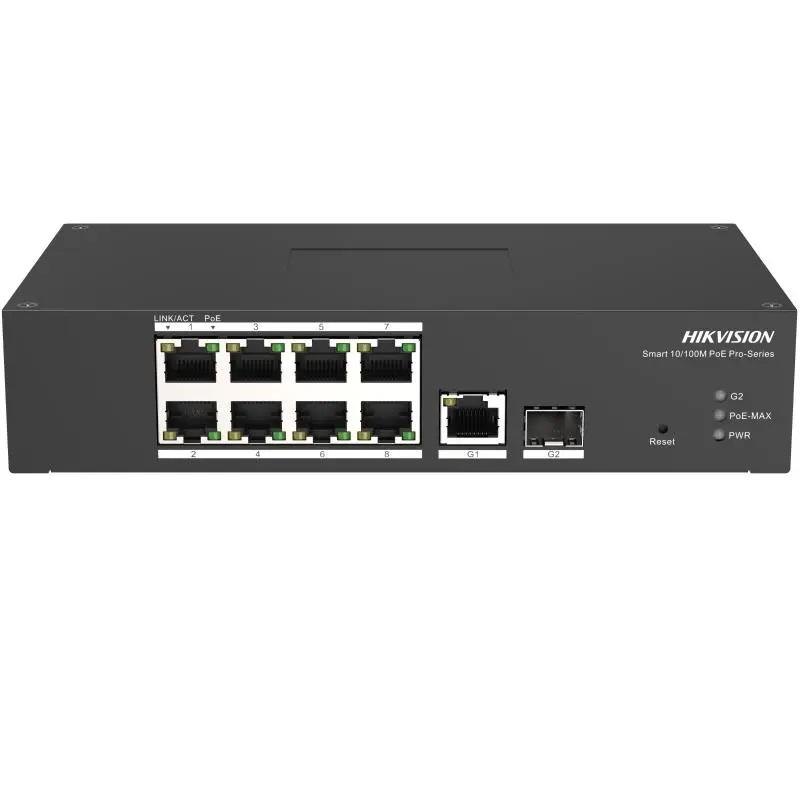

SWITCH 8PORTURI 110W 5.6 GB SMARTMANAGED

Switch 8 porturi PoE Hikvision DS-3T1310P-SI/HS prezinta 8 × 10/100 Mbps PoE port,1 × 1 Gbps RJ45 port,1 × 1 Gbps fiber optical port, RJ45 ort,full duplex,MDIMDI-X adaptive, IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z,IEEE 802.3x,MAC Address Table 16 K,Capacity 5.6 Gbps,4 Mbits,Long Range Ports 1 to 8: up to 300 m,Power 30 W,Budget 110 W, LLDP supported for port configuration, global configuration, and neighbour discovery,Shell Metal material, Weight 0.6 kg,Dimensions :197.00 mm × 114.20 mm × 42.20 mm,Operating Temperature -30 °C to 65 °C.
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Montare in rack: Nu
Management: Da
PoE: Da
Forwarding rate: 416 Mpps
LED indicators: Yes
Switching capacity: 56 Gbit/s
Store-and-forward: Yes
MAC address table: 16000 entries
Rack mounting: No
Housing material: Metal
International Protection (IP) code: IP40
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
Switch layer: L2
Switch type: Managed
Multicast support: Yes
10G support: No
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Security algorithms: SNMP
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Full duplex: Yes
Number of VLANs: 4094
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): -30 - 65 °C
Storage relative humidity (H-H): 5 - 95%
Package weight: 12 kg
Basic switching RJ-45 Ethernet ports quantity: 10
Gigabit Ethernet (copper) ports quantity: 2
Fast Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity: 8
Fiber ports quantity: 1
Power supply included: Yes
Input voltage: 48 DC
Power consumption (typical): 5 W
Power source: DC
Power consumption (max): 120 W
Total Power over Ethernet (PoE) budget: 110 W
Power over Ethernet (PoE) power per port: 30 W
Porturi SFP: None
Viteza Transfer: Fast Ethernet
Porturi RJ 45: 1 - 8
Weight: 600 g
Width: 197 mm
Height: 114.2 mm
Depth: 42.2 mm
