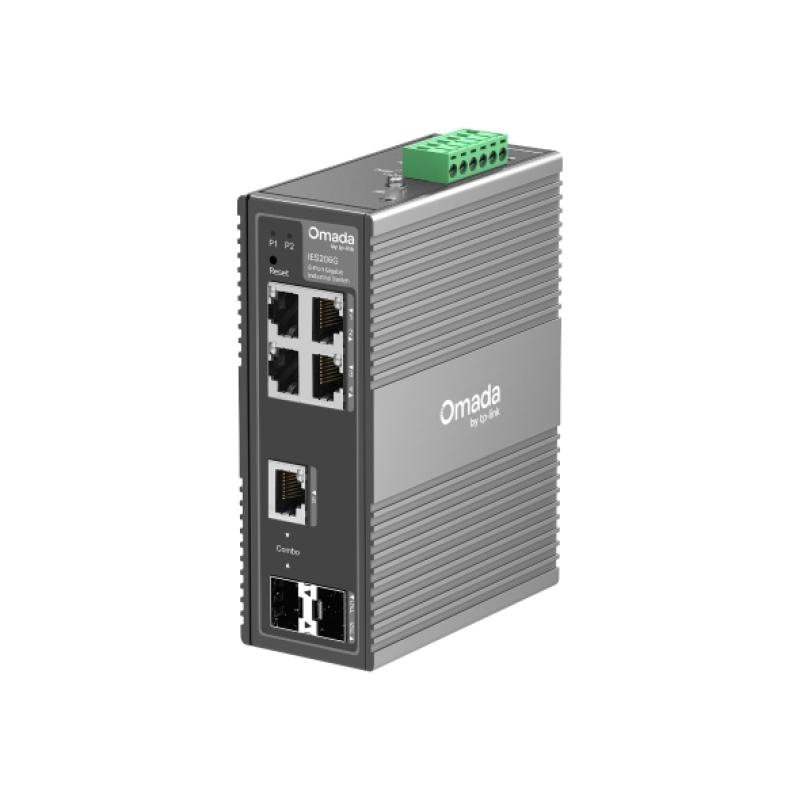

Omada 6-Port Gigabit Industrial Switch

Certification: FCC, CE, RoHS

Store-and-forward: Yes

Jumbo frames: 15000

Switching capacity: 12 Gbit/s

Forwarding rate: 8.93 Mpps

Jumbo frames support: Yes

MAC address table: 8000 entries

DIN rail mounting: Yes

Stackable: No

Wall mountable: Yes

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Quality of Service (QoS) support: Yes

Flow control support: Yes

Web-based management: Yes

Switch type: Managed

Cloud-managed: Yes

Multicast support: Yes

Auto-negotiation: Yes

10G support: No

Spanning tree protocol: Yes

Auto MDI/MDI-X: Yes

Link aggregation: Yes

Port mirroring: Yes

Power over Ethernet (PoE): No

Operating temperature (T-T): -40 - 75 °C

Storage temperature (T-T): -40 - 85 °C

Operating relative humidity (H-H): 5 - 95%

Storage relative humidity (H-H): 5 - 95%

Fanless: Yes

SFP module slots quantity: 1

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 4

SFP+ module slots quantity: 1

Combo SFP ports quantity: 1

DC input voltage: 9 - 60 V

Power source: DC

Power supply included: Yes

Redundant power supply (RPS) support: Yes

DHCP features: DHCP client

IGMP snooping: Yes

Depth: 95 mm

Height: 45 mm

Width: 129 mm

Rackable: No

LAN-Port-Type: FastEthernet

Redundant-PSU: No

LAN-Ports: 5
