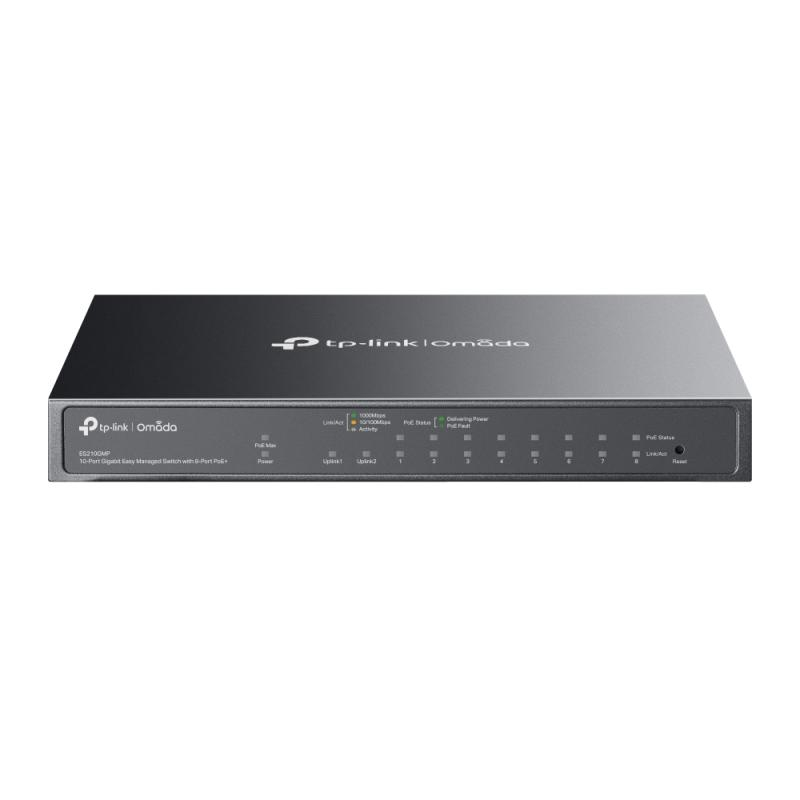

Omada 10Port Gigabit 8-Port PoE+ Switch

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports, 1x Gigabit Non-PoE Ports, 1× Combo Gigabit RJ45/SFP Port SPEC: 802.3at/af, 123 W PoE Power, Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 14.88 Mpps
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Packet buffer memory: 4 MB
Store-and-forward: Yes
Jumbo frames: 15
Jumbo frames support: Yes
MAC address table: 8000 entries
Switching capacity: 20 Gbit/s
Reset button: Yes
Product colour: Black
Wall mountable: Yes
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Flow control support: Yes
Quality of Service (QoS) support: Yes
VLAN support: Yes
Switch type: Managed
Cloud-managed: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
10G support: No
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Transmission distance (max): 0.25 km
User guide: Yes
Cables included: AC
Package type: Box
Fanless: Yes
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 10
Combo SFP ports quantity: 1
Input current: 2.43 A
DC input voltage: 53.5 V
Power source: DC
Power supply included: Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 123 W
DHCP features: DHCP client
IGMP snooping: Yes
Height: 26 mm
Depth: 126 mm
Width: 209 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
