DLINK SW 6P-GB POE 2CMB SMART RM

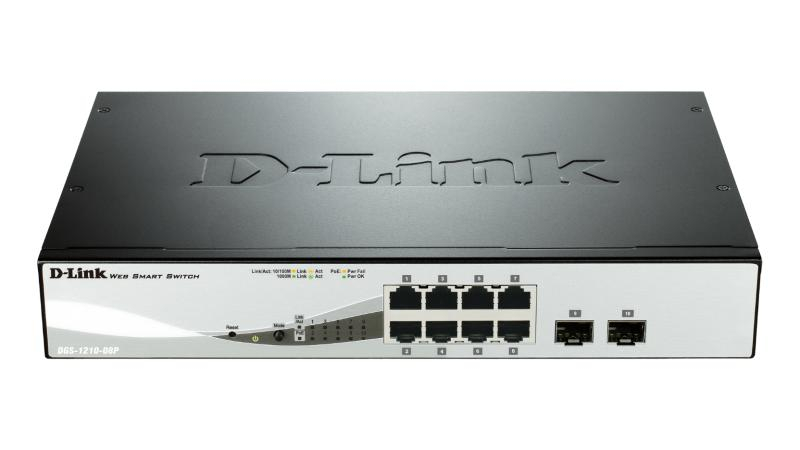

D-Link Switch DGS-1210-08P, 8 porturi Gigabit PoE 802.3af, PoE budget45W, 2 porturi combo 1000BaseT/SFP, Capacity 20Gbps, 16K MAC, W ebSmart,fanless
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 14.88 Mpps
Certification: CE Class A
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000 entries
Switching capacity: 20 Gbit/s
Cable management: Yes
Stackable: Yes
Rack mounting: Yes
Safety: cUL, LVD
Product colour: Black
LED indicators: Yes
Harmonized System (HS) code: 85176990
Web-based management: Yes
System event log: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes
Switch layer: L2/L3
Multicast support: Yes
Full duplex: Yes
Half duplex: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
10G support: Yes
Port mirroring: Yes
VLAN support: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Head-of-line (HOL) blocking: Yes
Heat dissipation: 279.59 BTU/h
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -20 - 70 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -5 - 50 °C
Power LED: Yes
Packet transfer speed: 14.9 Mp/s
Package weight: 2.17 kg
Package depth: 331 mm
Package height: 72 mm
Package width: 288 mm
Mean time between failures (MTBF): 729258 h
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Installed SFP+ modules quantity: 0
Input voltage: 54 V
Power source: DC
Power consumption (typical): 2.5 W
Power consumption (max): 81.9 W
Total Power over Ethernet (PoE) budget: 65 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes
Management protocols: SNMP, RMON
Data link protocols: IP
Static port security: Yes
DHCP features: DHCP server, DHCP client
MAC address filtering: Yes
Access Control List (ACL): Yes
SSH/SSL support: Yes
IGMP snooping: Yes
Master (outer) cases per pallet (sea): 54 pc(s)
Products per pallet (sea): 270 pc(s)
Pallet gross length: 110 cm
Master (outer) cases per pallet (air): 36 pc(s)
Pallet gross width: 120 cm
Shipping (inner) case height: 31.7 cm
Shipping (inner) case width: 34.6 cm
Shipping (inner) case length: 38.2 cm
Products per pallet (air): 180 pc(s)
Pallet height (air): 140.3 cm
Pallet height (sea): 2.04 m
Shipping (inner) case net weight: 10.8 kg
Pallet gross weight (air): 436.1 kg
Pallet gross weight (sea): 644.9 kg
Shipping (inner) case gross weight: 11.6 kg
Products per shipping (inner) case: 5 pc(s)
Weight: 950 g
Depth: 126 mm
Height: 44 mm
Width: 280 mm
LAN port type: Gigabit
