DLINK SW 16P-GB 4P-SFP SMART RM

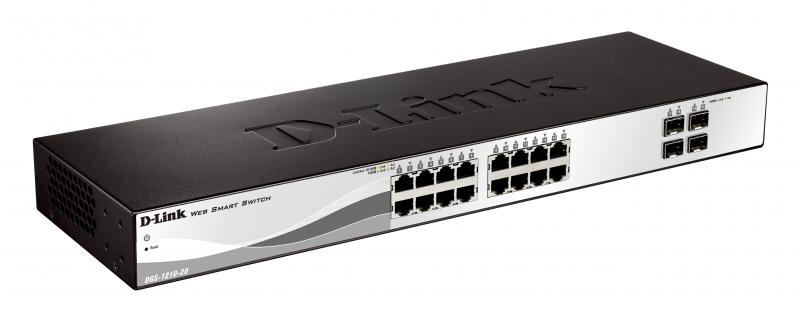

Switch D-Link DGS-1210-20, 16 porturi Gigabit, 4 porturi SFP, Capacity 40Gbps, 16K MAC, 19" Rackmount, WebSmart, fanless
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 77.4 Mpps
Switching capacity: 40 Gbit/s
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000 entries
Stackable: Yes
Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
ARP inspection: Yes
MIB support: Y
Switch layer: L2
Configuring Location Settings (CLI): Yes
Multicast support: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Port mirroring: Yes
VLAN support: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex: Yes
Link aggregation: Yes
Head-of-line (HOL) blocking: Yes
Number of VLANs: 256
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Heat dissipation: 44.62 BTU/h
Noise level: 0 dB
Mean time between failures (MTBF): 1087100 h
Flash memory: 32 MB
Memory type: DDR3-SDRAM
Basic switching RJ-45 Ethernet ports quantity: 16
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Combo SFP ports quantity: 4
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 13.08 W
Power supply included: Yes
Power over Ethernet (PoE): No
MAC address filtering: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
Loop protection: Yes
DHCP features: DHCP server, DHCP client
Depth: 180 mm
Height: 44 mm
Weight: 1.75 kg
Width: 280 mm
LAN port type: Gigabit
