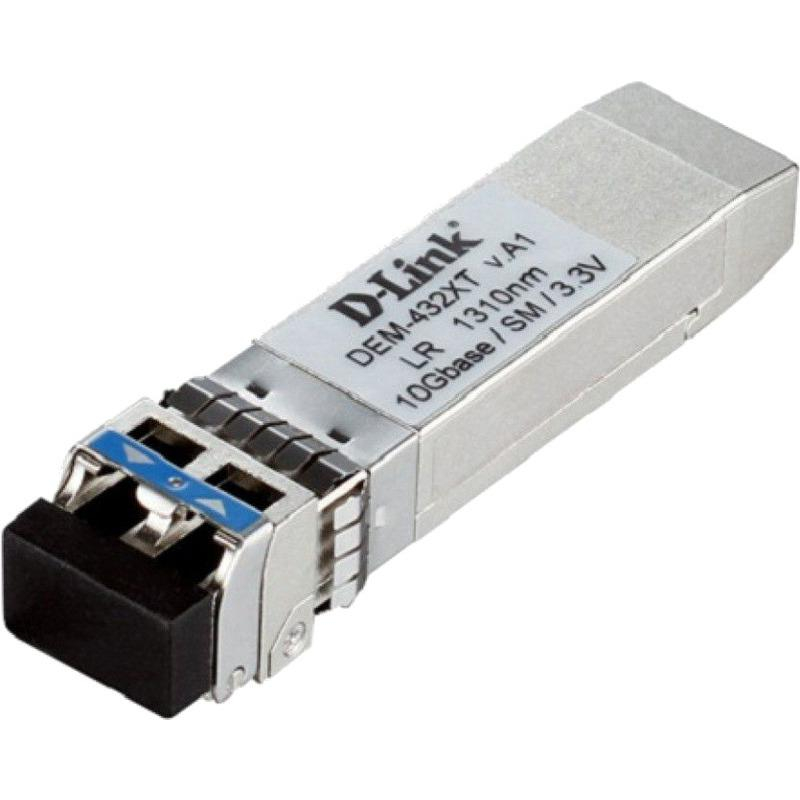

D-LINK MULTI MODE FIBER TRANSCEIVER SFP+

Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.1 dB/ 10.1 dB;
Garantie: 60 luni


Specificatii tehnice

Safety: UL, TUV, CDRH
Compliance certificates: RoHS
Certification: CE, FCC, VCCI, MSA
Product colour: Gold, Metallic
Mean time between failures (MTBF): 4650000 h
Hot-Plug support: Yes
Networking standards: IEEE 802.3ae
Master (outer) cases per pallet (air): 60 pc(s)
Master (outer) cases per pallet (sea): 60 pc(s)
Shipping (inner) case length: 36 cm
Shipping (inner) case height: 31 cm
Shipping (inner) case width: 26 cm
Pallet gross length: 102 cm
Pallet gross width: 122 cm
Harmonized System (HS) code: 85369010
Products per shipping (inner) case: 50 pc(s)
Shipping (inner) case net weight: 3.2 kg
Pallet gross weight (air): 272 kg
Products per pallet (air): 3000 pc(s)
Pallet height (air): 199 cm
Pallet gross weight (sea): 272 kg
Products per pallet (sea): 3000 pc(s)
Pallet height (sea): 199 cm
Shipping (inner) case gross weight: 4.2 kg
Duplex system: Full
Maximum data transfer rate: 10000 Mbit/s
Fiber ethernet cabling technology: 10GBASE
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 5 - 85%
Wavelength: 1310 nm
Fiber optic connector: LC
Package depth: 131 mm
Package width: 74 mm
Package height: 49 mm
Package weight: 64 g
Link budget: 10.1 dB
Multi-mode fiber (MMF) supported: No
SFP transceiver standard: LR
Tx power (min): -8.5 dBmW
Tx power (max): 0.5 dBmW
Rx power (min): -12.6 dBmW
Rx power (max): 0.5 dBmW
SFP transceiver type: Fiber optic
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Interface type: SFP
Single-mode fiber (SMF) supported: Yes
Maximum voltage: 3.3 V
Maximum current: 300 A
Weight: 195 g
Depth: 118 mm
Width: 148 mm
Height: 56.5 mm
