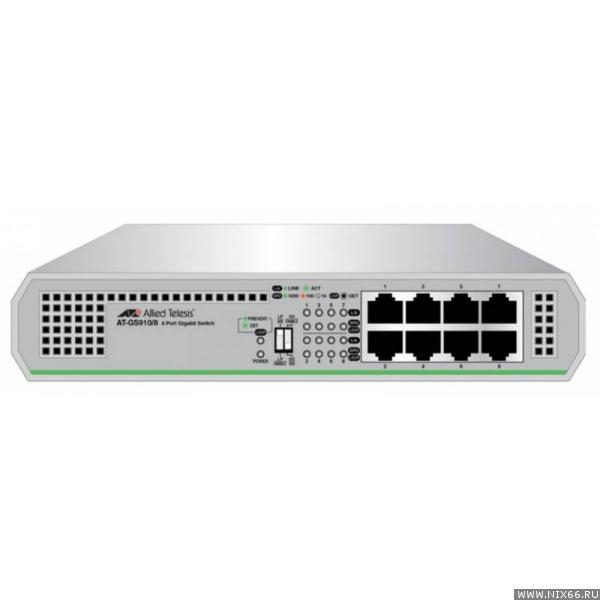

ATI SW 8P GB L2 UNMANAGED

Certification: EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022

Packet forwarding rate (1 Gbps): 1488000 pps

Jumbo frames support: Yes

Jumbo frames: 9216

Packet forwarding rate (100 Mbps): 148800 pps

Packet forwarding rate (10 Mbps): 14880 pps

Throughput: 11.9 Mpps

Switching capacity: 16 Gbit/s

MAC address table: 4000 entries

Rack mounting: Yes

Form factor: 1U

Safety: UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB)

LED indicators: Yes

Housing material: Metal

Wall mountable: Yes

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Web-based management: Yes

Switch type: Unmanaged

10G support: No

Broadcast storm control: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T

Full duplex: Yes

Auto-negotiation: Yes

Power over Ethernet (PoE): No

Storage relative humidity (H-H): 5 - 95%

Operating temperature (T-T): 0 - 50 °C

Operating relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -25 - 70 °C

Included power plug types: UK

Buffer size: 128 KB

Installed SFP modules quantity:

Console port: RJ-45

Gigabit Ethernet (copper) ports quantity: 8

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Installed SFP+ modules quantity:

Input current: 0.2 A

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power consumption (max): 4.5 W

Loop protection: Yes

BPDU filtering/protection: Yes

Depth: 121 mm

Weight: 780 g

Width: 210 mm

Height: 38 mm

LAN port type: Gigabit

Garantia Produsului: 24 luni
