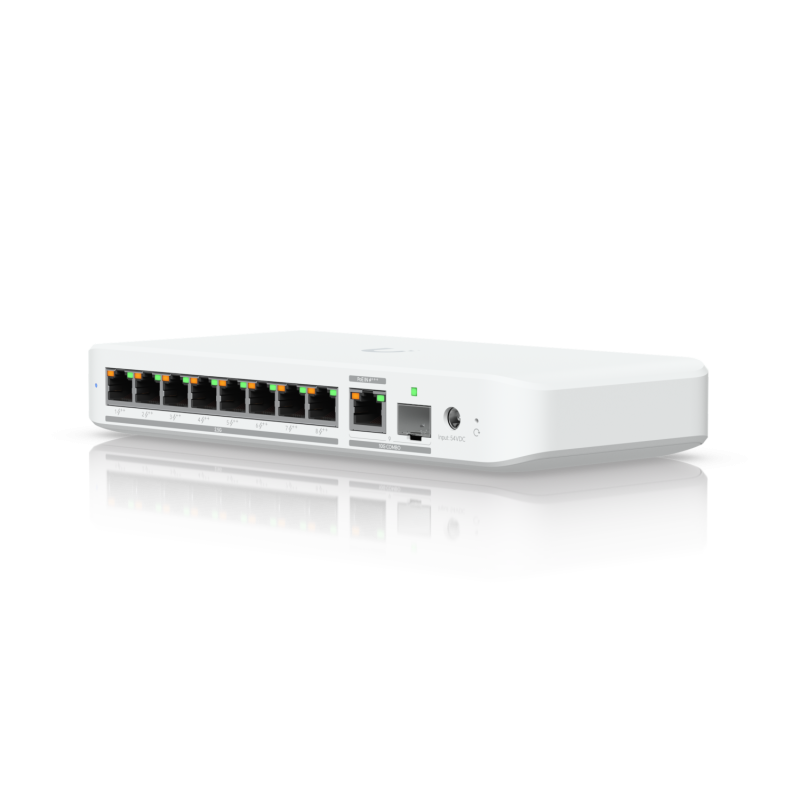

Ubiquiti USW-Flex-2.5G-8 POE RJ45

Ubiquiti USW-Flex-2.5G-8 POE , capacitate switch 60 Gbps, interfata (8) 2.5/1 GbE RJ45 ports, (1) 10G SFP+ or 10/5/2.5/1 GbE combination port, dimensiuni 212.9 x 99.4 x 33.5 mm
Garantie: 24 luni


Specificatii tehnice

Stackable: No
Layer: Layer-2
LED indicators: Activity, Link, PoE, Power, Status
Forwarding rate: 44.64 Mpps
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
Switching capacity: 60 Gbit/s
Throughput: 30 Gbit/s
Jumbo frames support: Yes
Reset button: Yes
DIN rail mounting: Yes
Form factor: Desktop/Wall-Mounting
Product colour: White
Housing material: Polycarbonate (PC)
Wall mountable: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Flow control support: Yes
Rate limiting: Yes
Switch layer: L2
Switch type: Managed
Multicast support: Yes
Broadcast storm control: Yes
10G support: Yes
Port mirroring: Yes
Power over Ethernet (PoE): Yes
Operating temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 10 - 90%
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP module slots quantity: 1
Power connector: DC-in jack
SFP+ module slots quantity: 1
10G Ethernet (copper) ports quantity: 1
2.5G Ethernet (copper) ports quantity: 8
Power over Ethernet (PoE) voltage: 57 V
Input current: 3.9 A
Power consumption (max): 17 W
Power source: AC/DC/PoE
DC input voltage: 54 V
Power supply included: No
Total Power over Ethernet (PoE) budget: 196 W
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet plus (PoE+) ports quantity: 8
Loop protection: Yes
Height: 33.5 mm
Width: 212.9 mm
Depth: 99.4 mm
Weight: 567 g
Rackable: No
LAN-Port-Type: Gigabit
Redundant-PSU: No
LAN-Ports: 5
