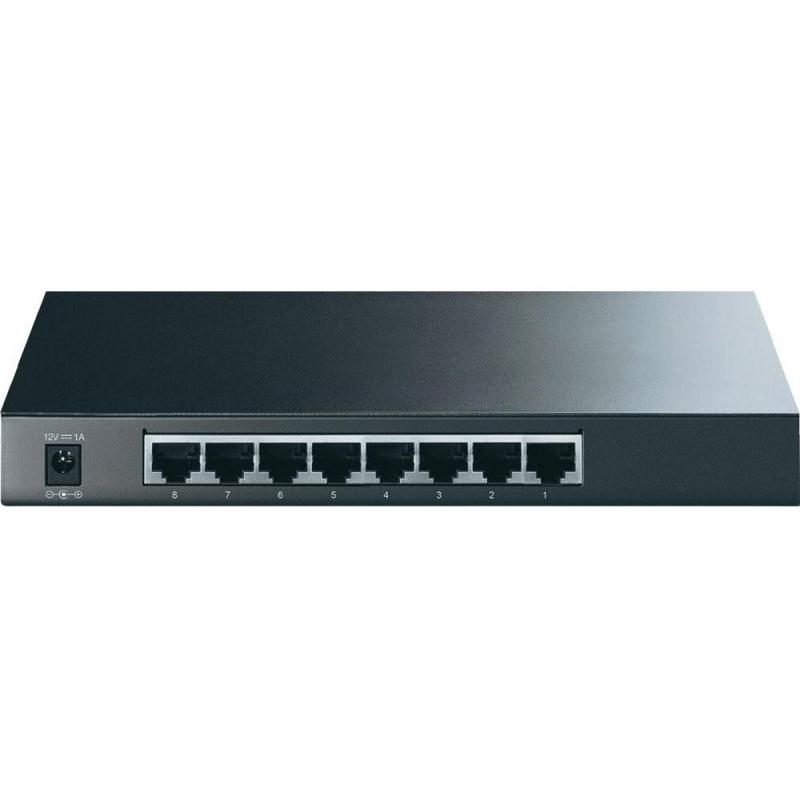

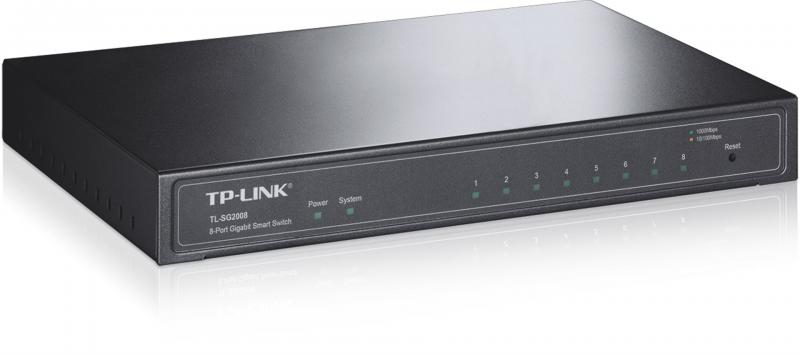

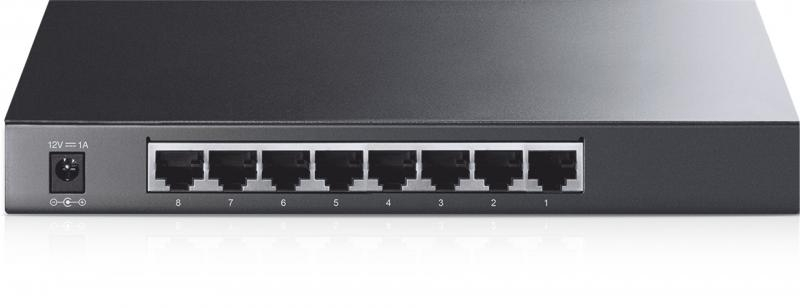

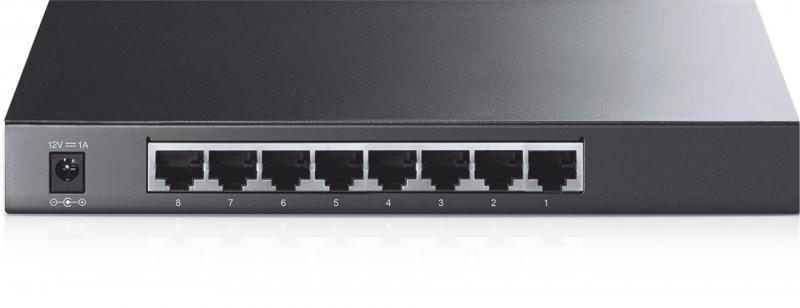

TPL SW 8P-GB SMART

"JetStream™ 8-Port Gigabit Smart Switch PORT: 8× Gigabit RJ45 Ports including 1 PoE IN Port SPEC: Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6"
Garantie: 24 luni


Specificatii tehnice

Forwarding rate: 11.9 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Number of IP interfaces: 16
Number of static routes: 32
Packet buffer memory: 4 MB
Store-and-forward: Yes
Switching capacity: 16 Gbit/s
MAC address table: 8000 entries
Jumbo frames: 9000
Jumbo frames support: Yes
Static route: Yes
Product colour: Black
Wall mountable: Yes
Flow control support: Yes
Rate limiting: Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flash memory: 32 MB
Harmonized System (HS) code: 85176990
Cloud-managed: Yes
ARP inspection: Yes
MIB support: Y
Switch layer: L2/L2+
Web-based management: Yes
System event log: Yes
Switch type: Managed
Multicast support: Yes
10G support: No
Half duplex: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Number of VLANs: 4000
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Port mirroring: Yes
Link aggregation: Yes
Full duplex: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Power over Ethernet (PoE): No
Security algorithms: SSH, SSH-2, SSL/TLS
Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
User guide: Yes
Cables included: AC
Package height: 68 mm
Package weight: 930 g
Package width: 223 mm
Package depth: 280 mm
Fanless: Yes
Gigabit Ethernet (copper) ports quantity: 8
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 8
Installed SFP modules quantity: 0
Power supply included: Yes
Input current: 1 A
Input voltage: 12 V
Power consumption (max): 6.42 W
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power source: DC
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
SSH/SSL support: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
IGMP snooping: Yes
Access Control List (ACL): Yes
Height: 26 mm
Depth: 126 mm
Width: 209 mm
LAN-Port-Type: Gigabit
