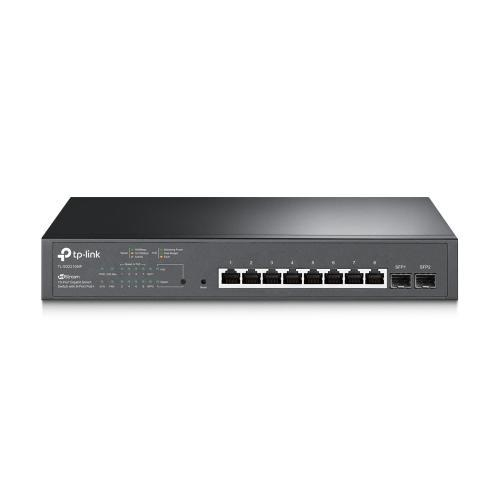

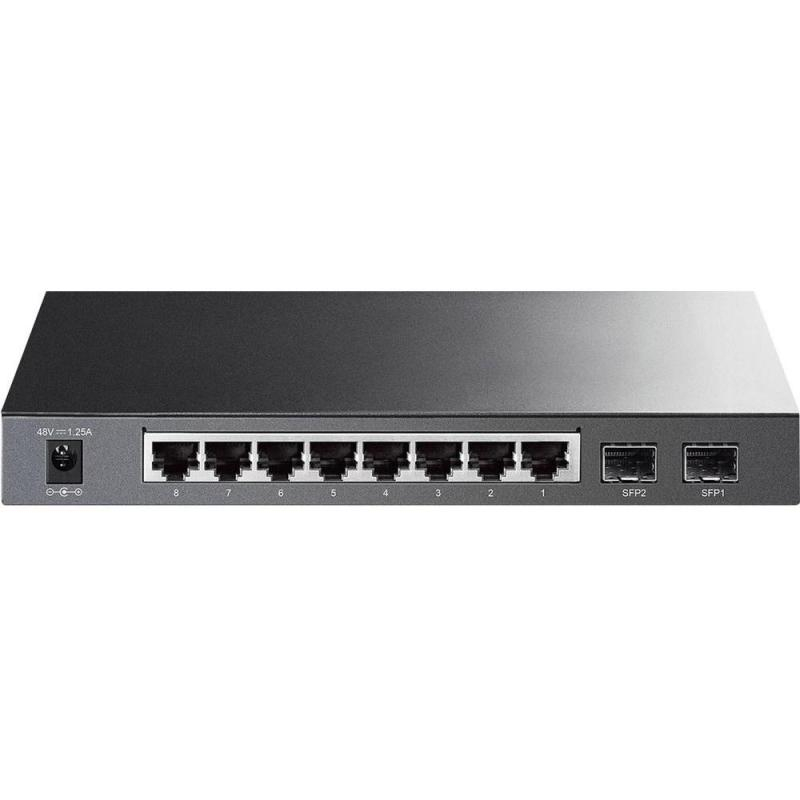

TPL SW 8P-GB SMART POE

JetStream™ 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots PORT: 8× Gigabit PoE Ports, 2× Gigabit SFP Slots SPEC: 802.3af/at, 58 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6"
Garantie: 24 luni


Specificatii tehnice

Montare in rack: No
Console port: RJ-45
Forwarding rate: 14.9 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
MAC address table: 8000 entries
Jumbo frames: 9000
Switching capacity: 20 Gbit/s
Number of queues: 4
Packet buffer memory: 4.1 MB
Jumbo frames support: Yes
Product colour: Black
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
Harmonized System (HS) code: 85176990
Switch layer: L2/L4
Firmware upgradeable: Yes
Web-based management: Yes
Switch type: Managed
ARP inspection: Yes
MIB support: Y
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
Copper ethernet cabling technology: 1000BASE-T, 1000BASE-TX, 10BASE-T
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs: 4000
Security algorithms: SNMP, SSH, SSH-2
Auto MDI/MDI-X: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Power over Ethernet (PoE): Yes
Link aggregation: Yes
Port mirroring: Yes
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Fiber ethernet cabling technology: 1000BASE-X, 100BASE-FX
Fiber type: Multi-mode
Quick start guide: Yes
Cables included: AC
Package weight: 1.25 kg
Package height: 70 mm
Package width: 240 mm
Package depth: 315 mm
Fanless: Yes
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 8
Fiber optic connector: SFP
SFP module slots quantity: 2
Installed SFP+ modules quantity: 0
Fiber ports quantity: 2
Installed SFP modules quantity: 0
SFP+ module slots quantity: 2
Power source: AC
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 77.8 W
Power supply included: Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 58 W
IPv4 & IPv6 features: Dual stack IPv4/IPv6
BPDU filtering/protection: Yes
SSH/SSL support: Yes
DHCP features: DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IGMP snooping: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Static port security: Yes
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Height: 26 mm
Depth: 126 mm
Width: 209 mm
LAN port type: Gigabit
