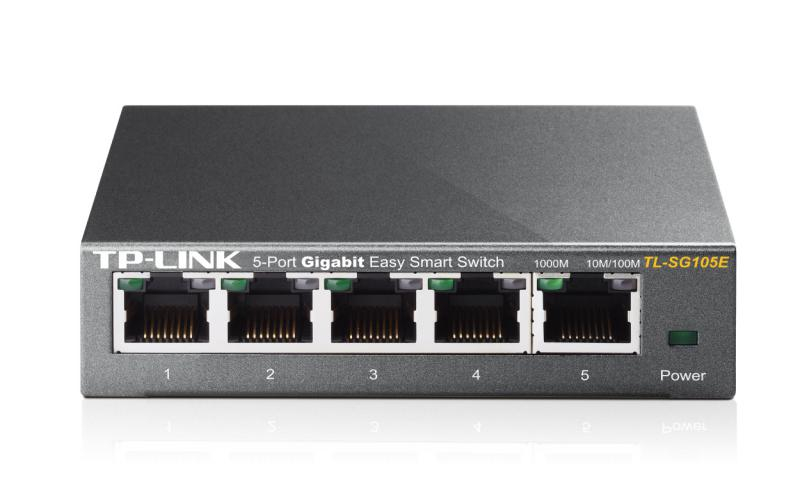

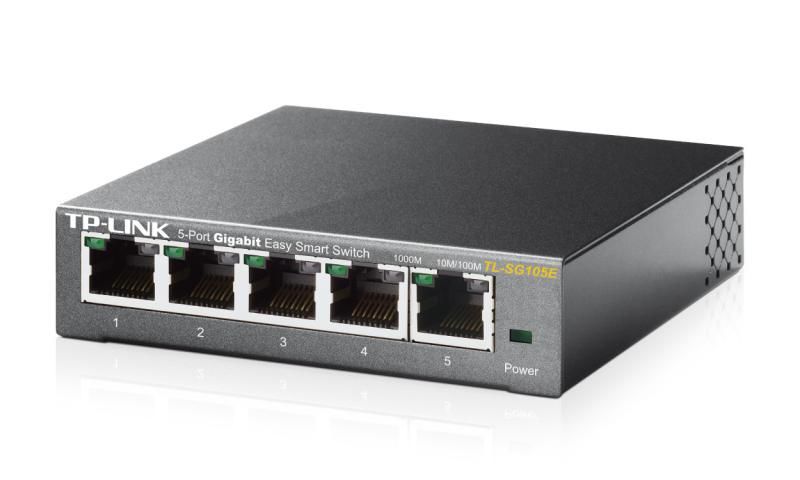

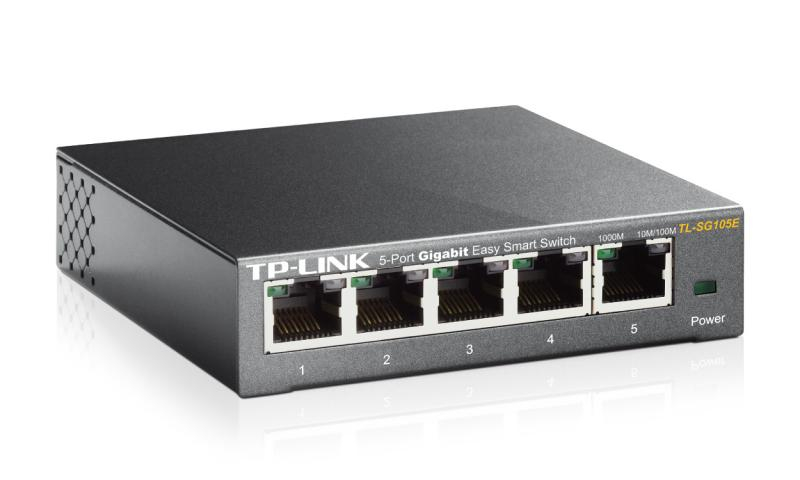

TPL SW 5P-GB EASY-SMART

"5-Port Gigabit Easy Smart Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Stackable: No
Layer: Unmanaged
Forwarding rate: 7.44 Mpps
LED indicators: Yes
Certification: FCC, CE, RoHS
Throughput: 7.4 Mpps
Packet buffer memory: 1 MB
Store-and-forward: Yes
Switching capacity: 10 Gbit/s
MAC address table: 8192 entries
Jumbo frames support: Yes
Jumbo frames: 16000
Rack mounting: No
Product colour: Black
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Quality of Service (QoS) support: Yes
VLAN support: Yes
Flow control support: Yes
Harmonized System (HS) code: 85176990
Switch layer: L2
Web-based management: Yes
Switch type: Managed
Port mirroring: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Power over Ethernet (PoE): No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation: Yes
Virtual LAN features: Port-based VLAN
Number of VLANs: 32
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
10G support: No
Heat dissipation: 9.62 BTU/h
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Quick start guide: Yes
User guide: Yes
Cables included: AC
Rack mount kit: Yes
Package type: Box
Package height: 92 mm
Package depth: 128 mm
Package width: 125 mm
Package weight: 450 g
Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Basic switching RJ-45 Ethernet ports quantity: 5
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 0
Gigabit Ethernet (copper) ports quantity: 5
Input current: 0.6 A
Power supply included: Yes
Input voltage: 5 V
DC input voltage: 5 V
AC input frequency: 50 Hz
Power consumption (max): 2.82 W
Power source: DC
AC input voltage: 220 V
IGMP snooping: Yes
Height: 25 mm
Depth: 98 mm
Width: 100 mm
LAN port type: Gigabit
Rackable: No
Redundant-PSU: No
LAN-Ports: 5
