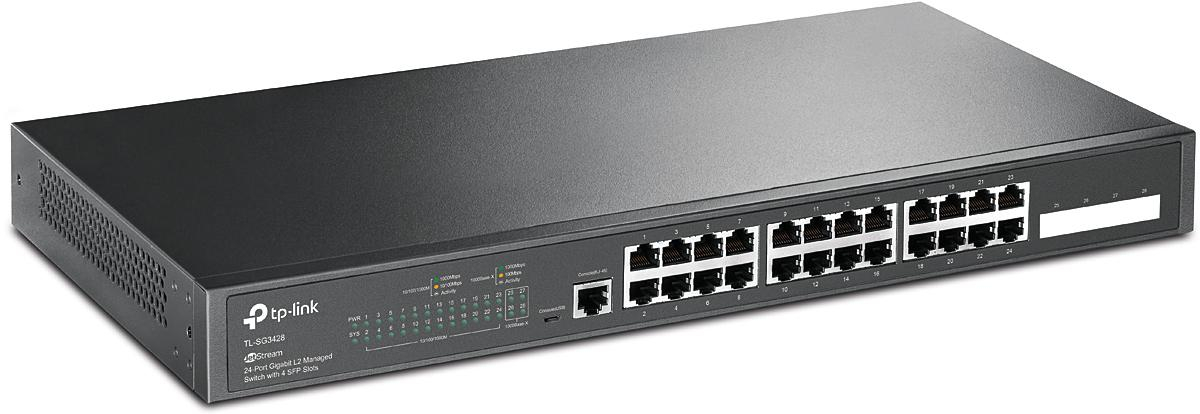

TPL SW 24P-GB 4 SFP L2 MANAGED

Jumbo frames support: Yes

Static route: Yes

Jumbo frames: 9000

MAC address table: 16000 entries

Store-and-forward: Yes

Switching capacity: 56 Gbit/s

Packet buffer memory: 12 MB

Number of static routes: 48

Forwarding rate: 41.66 Mpps

Product colour: Black

LED indicators: Yes

Number of fans: 0 fan(s)

Rack mounting: Yes

Form factor: 1U

Ethernet LAN data rates: 10,100,1000 Mbit/s

Flow control support: Yes

Rate limiting: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

Harmonized System (HS) code: 85176990

Switch layer: L2/L3

MIB support: Yes

Cloud-managed: Yes

Web-based management: Yes

System event log: Yes

Switch type: Managed

ARP inspection: Yes

Configuring Location Settings (CLI): Yes

Multicast support: Yes

Multicast Listener Discovery (MLD) snooping: Y

IPv4 routes: 48

IPv6 routes: 48

Head-of-line (HOL) blocking: Yes

10G support: No

Broadcast storm control: Yes

Spanning tree protocol: Yes

IP routing: Yes

Number of VLANs: 4000

Port mirroring: Yes

Link aggregation: Yes

Policy-based routing: Yes

Power over Ethernet (PoE): No

Virtual LAN features: Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 0 - 45 °C

Storage temperature (T-T): -40 - 70 °C

Heat dissipation: 65.58 BTU/h

Storage relative humidity (H-H): 5 - 90%

Cables included: LAN (RJ-45)

Quick start guide: Yes

Package depth: 250 mm

Package height: 80 mm

Package width: 528 mm

Package weight: 2.77 kg

SFP+ module slots quantity: 4

Console port: RJ-45/Micro-USB

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 24

Gigabit Ethernet (copper) ports quantity: 24

Installed SFP+ modules quantity:

SFP module slots quantity: 4

Power supply included: No

Power consumption (max): 19.22 W

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power source: AC

GARP VLAN Registration Protocol (GVRP): Yes

IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Management protocols: SNMPv1/v2c/v3, SNTP

Authentication type: AAA, RADIUS, TACACS+

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

IP-MAC-Port binding: Yes

Authentication: MAC-based authentication, Port-based authentication

BPDU filtering/protection: Yes

Static port security: Yes

SSH/SSL support: Yes

Loop protection: Yes

MAC address filtering: Yes

Access Control List (ACL): Yes

IGMP snooping: Yes

Depth: 180 mm

Width: 440 mm

Height: 44 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
