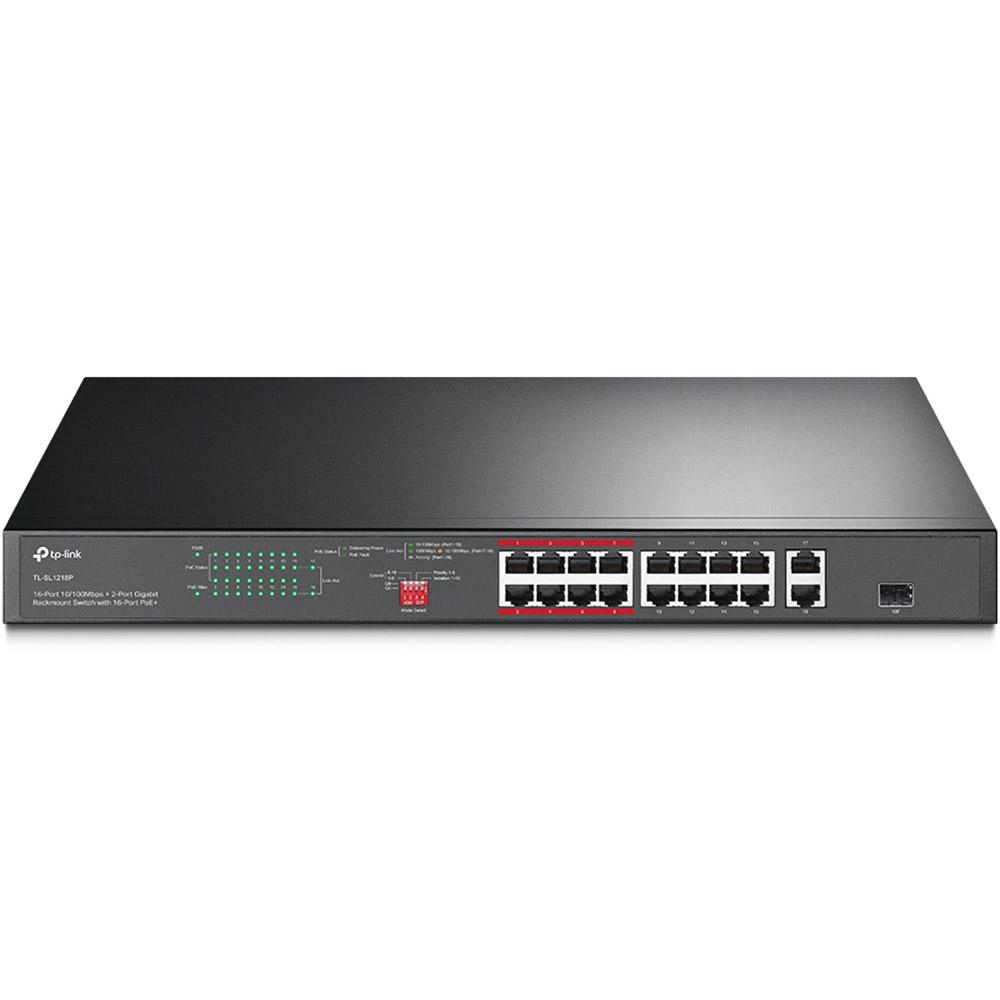

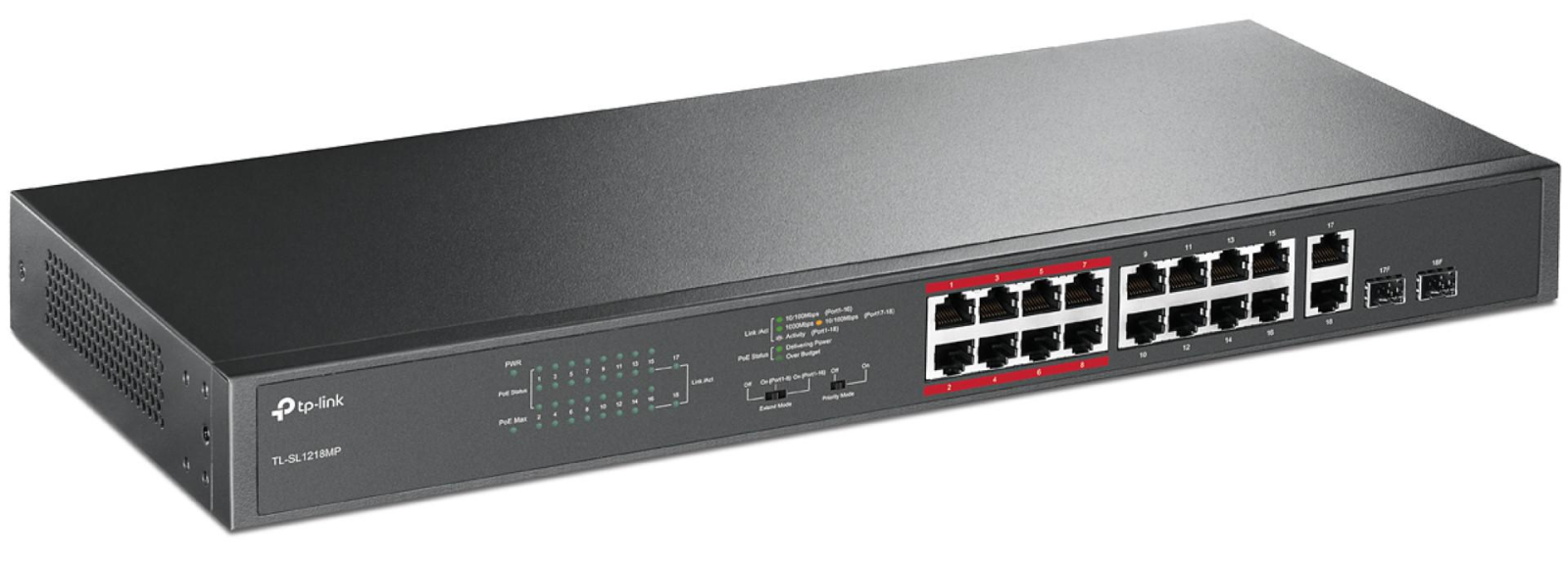

TPL SW 16P-POE ,2P-GB SFP UNMNGD RM

"16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ PORT: 16× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot HARDWARE: 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Extend Mode for 250 m PoE Transmitting, Priority Mode for Port 1-8, Isolation Mode, Plug and Play"
Garantie: 60 luni


Specificatii tehnice

Forwarding rate: 5.36 Mpps
LED indicators: Yes
Certification: CE, FCC, RoHS
Jumbo frames: 10000
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Switching capacity: 7.2 Gbit/s
Jumbo frames support: Yes
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Housing material: Metal
Product colour: Black
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Harmonized System (HS) code: 85176990
Traffic classification: Yes
Switch type: Unmanaged
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Power over Ethernet (PoE): Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
10G support: No
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 589.25 BTU/h
Quick start guide: Yes
Cables included: AC
Package height: 80 mm
Package width: 250 mm
Package weight: 28 kg
Package depth: 528 mm
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 18
Combo SFP ports quantity: 1
Fast Ethernet (copper) ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 2
Power supply included: Yes
Power consumption (max): 172.8 W
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power source: AC
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet plus (PoE+) ports quantity: 16
Depth: 180 mm
Width: 440 mm
Height: 44 mm
