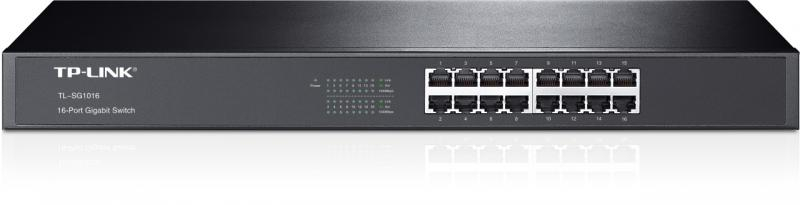

TPL SW 16P-GB UNMNGD RM

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Certification: FCC, CE, RoHS

Jumbo frames support: Yes

MAC address table: 8000 entries

Switching capacity: 32 Gbit/s

Forwarding rate: 23.8 Mpps

Store-and-forward: Yes

Jumbo frames: 10000

Product colour: Black

Housing material: Metal

Rack mounting: Yes

Form factor: 1U

LED indicators: Activity, Link, Power

Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s

Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Port mirroring: Yes

Policy-based routing: Yes

Full duplex: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

10G support: No

Half duplex: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

IP routing: Yes

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Head-of-line (HOL) blocking: Yes

Operating temperature (T-T): 0 - 40 °C

Heat dissipation: 35.6 BTU/h

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Rack mount kit: Yes

Cables included: AC

Package type: Box

Package weight: 2.04 kg

Package width: 250 mm

Package depth: 528 mm

Maximum cable length: 100 m

Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10nMacOSnNetWarenUNIXnLinux

Fanless: Yes

Installed SFP modules quantity:

Gigabit Ethernet (copper) ports quantity: 16

Power connector: AC-in jack

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 16

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power supply included: Yes

Power source: AC

Power consumption (max): 10.44 W

Power consumption (typical): 9.26 W

AC input frequency: 50 - 60 Hz

AC input voltage: 100 - 240 V

IGMP snooping: Yes

Password protection: Yes

Access Control List (ACL): Yes

Security algorithms: 802.1x RADIUS

DHCP features: DHCP client, DHCP server, DHCP snooping

Sustainability compliance: Yes

Depth: 180 mm

Width: 440 mm

Height: 44 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
