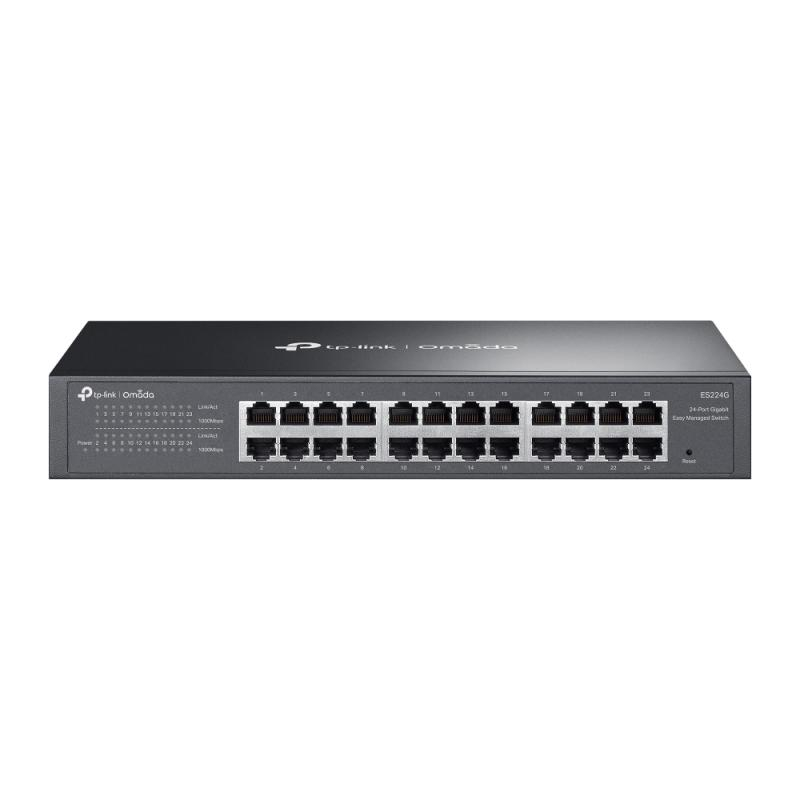

Omada 24-Port Gigabit Easy Managed Switc

Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Garantie: 36 luni


Specificatii tehnice

Stackable: No
Forwarding rate: 35.7 Mpps
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Store-and-forward: Yes
Switching capacity: 48 Gbit/s
Jumbo frames: 15000
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Jumbo frames support: Yes
Rack mounting: Yes
Product colour: Black
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Surge protection: Yes
Firmware upgradeable: Yes
Switch layer: L2
Web-based management: Yes
Switch type: Managed
Cloud-managed: Yes
Unified static configuration: Yes
Multicast support: Yes
Broadcast storm control: Yes
Number of VLANs: 32
Fast leave: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN
Port mirroring: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -5 - 50 °C
User guide: Yes
Cables included: AC
Rack mount kit: No
Fanless: Yes
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power supply included: Yes
Surge protection voltage: 6 kV
Power source: AC
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Queue scheduling algorithms: Weighted Round Robin (WRR)
DHCP features: DHCP client
IGMP snooping: Yes
Depth: 140 mm
Width: 294 mm
Height: 44 mm
Rackable: No
LAN-Port-Type: FastEthernet
LAN-Ports: 8
Redundant-PSU: No
