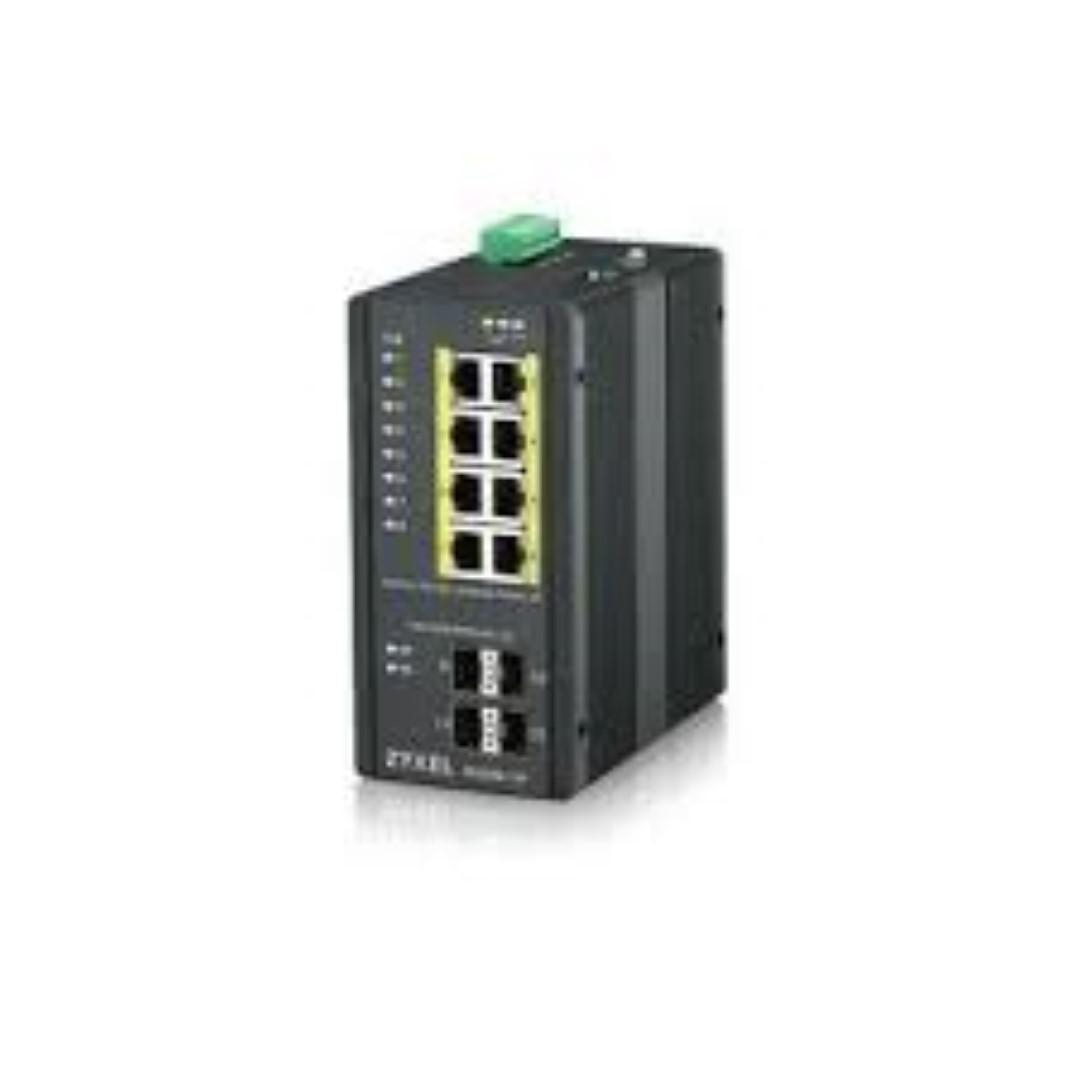

ZYXEL RGS200-12P 12PORT GBE POE SWITCH

Jumbo frames support: Yes

Number of queues: 8

Jumbo frames: 9000

Packet buffer memory: 0.5 MB

MAC address table: 8000 entries

Store-and-forward: Yes

Switching capacity: 24 Gbit/s

Throughput: 17.86 Mpps

Housing material: Metal

Wall mountable: Yes

International Protection (IP) code: IP30

DIN rail mounting: Yes

Stackable: No

Rack mounting: Yes

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Rate limiting: Yes

Mean time between failures (MTBF): 568430 h

Harmonized System (HS) code: 85176990

MIB support: RFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB

ARP inspection: Yes

Firmware upgradeable: Yes

Switch layer: L2

Web-based management: Yes

System event log: Yes

Switch type: Managed

Multicast support: Yes

10G support: No

Broadcast storm control: Yes

Virtual LAN features: Tagged VLAN

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Port mirroring: Yes

Full duplex: Yes

Power over Ethernet (PoE): Yes

Link aggregation: Yes

Number of VLANs: 1024

Heat dissipation: 86955 BTU/h

Storage temperature (T-T): -40 - 85 °C

Operating temperature (T-T): -40 - 75 °C

Storage relative humidity (H-H): 5 - 90%

Fiber ethernet cabling technology: 1000BASE-X

Transmission distance (max): 40 km

Rack mount kit: Yes

Wall mounting kit: Yes

Package depth: 192 mm

Package width: 133 mm

Package height: 238 mm

Package weight: 19 kg

Buffer size: 512 KB

Plug and Play: Yes

Installed SFP modules quantity:

SFP+ module slots quantity: 4

SFP module slots quantity: 4

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Fiber optic connector: SFP

DC input voltage: 12 - 58 V

Input voltage: 12 - 58 V

Power consumption (max): 255 W

Total Power over Ethernet (PoE) budget: 240 W

Power over Ethernet plus (PoE+) ports quantity: 8

MAC address filtering: Yes

Access Control List (ACL): Yes

SSH/SSL support: Yes

Authentication: Guest VLAN, MAC-based authentication, Port-based authentication

IGMP snooping: Yes

Security algorithms: 802.1x RADIUS, HTTPS, SNMP, SSH-2

Height: 154 mm

Width: 77 mm

Weight: 1.45 kg

Depth: 127.3 mm

Layer: Layer-2

Rackable: No

LAN-Port-Type: Gigabit

Redundant-PSU: No

Garantia Produsului: 60 luni
