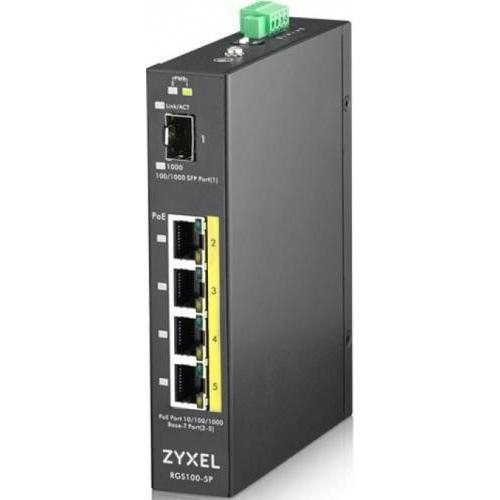

ZYXEL RGS100-5P 5PORT GBE POE SWITCH

Jumbo frames support: Yes

Jumbo frames: 9000

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 10 Gbit/s

Throughput: 7.44 Mpps

Packet buffer memory: 0.25 MB

DIN rail mounting: Yes

Housing material: Metal

Wall mountable: Yes

International Protection (IP) code: IP30

Rack mounting: Yes

Flow control support: Yes

Power protection features: Short circuit

Mean time between failures (MTBF): 568430 h

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Switch layer: L2

Multicast support: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

Full duplex: Yes

10G support: No

MAC address auto-learning supported: Yes

Heat dissipation: 42625 BTU/h

Storage temperature (T-T): -40 - 85 °C

Operating relative humidity (H-H): 5 - 95%

Operating temperature (T-T): -40 - 75 °C

Storage relative humidity (H-H): 5 - 90%

Transmission distance (max): 40 km

Fiber ethernet cabling technology: 1000BASE-X

Rack mount kit: Yes

Wall mounting kit: Yes

Package height: 205 mm

Package width: 70 mm

Package weight: 700 g

Package depth: 177.8 mm

Plug and Play: Yes

Fiber optic connector: SFP

Basic switching RJ-45 Ethernet ports quantity: 4

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP module slots quantity: 1

Installed SFP modules quantity:

Installed SFP+ modules quantity:

SFP+ module slots quantity: 1

Power consumption (max): 125 W

DC input voltage: 12 - 58 V

Input voltage: 12 - 58 V

Power over Ethernet plus (PoE+) ports quantity: 4

Total Power over Ethernet (PoE) budget: 120 W

Weight: 500 g

Width: 29.1 mm

Depth: 107.3 mm

Height: 139 mm

Garantia Produsului: 60 luni
